Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Refer to FASTENER NOTICE in Cautions and Notices.

Install the front seat belt retractor (7) to the vehicle. Secure the retractor with the upper bolt (3) and the lower bolt (6).
Tighten
- Tighten the front seat belt retractor upper mounting bolt to 4.9 N.m (43 lb in).
- Tighten the front seat belt retractor lower mounting bolt to 42 N.m (31 lb ft).
Fig 1: Installing Front Seat Belt Retractor, Upper Bolt & Lower Bolt (Right Front)
Courtesy of GENERAL MOTORS CORP.
Connect the pretensioner electrical connector (1).

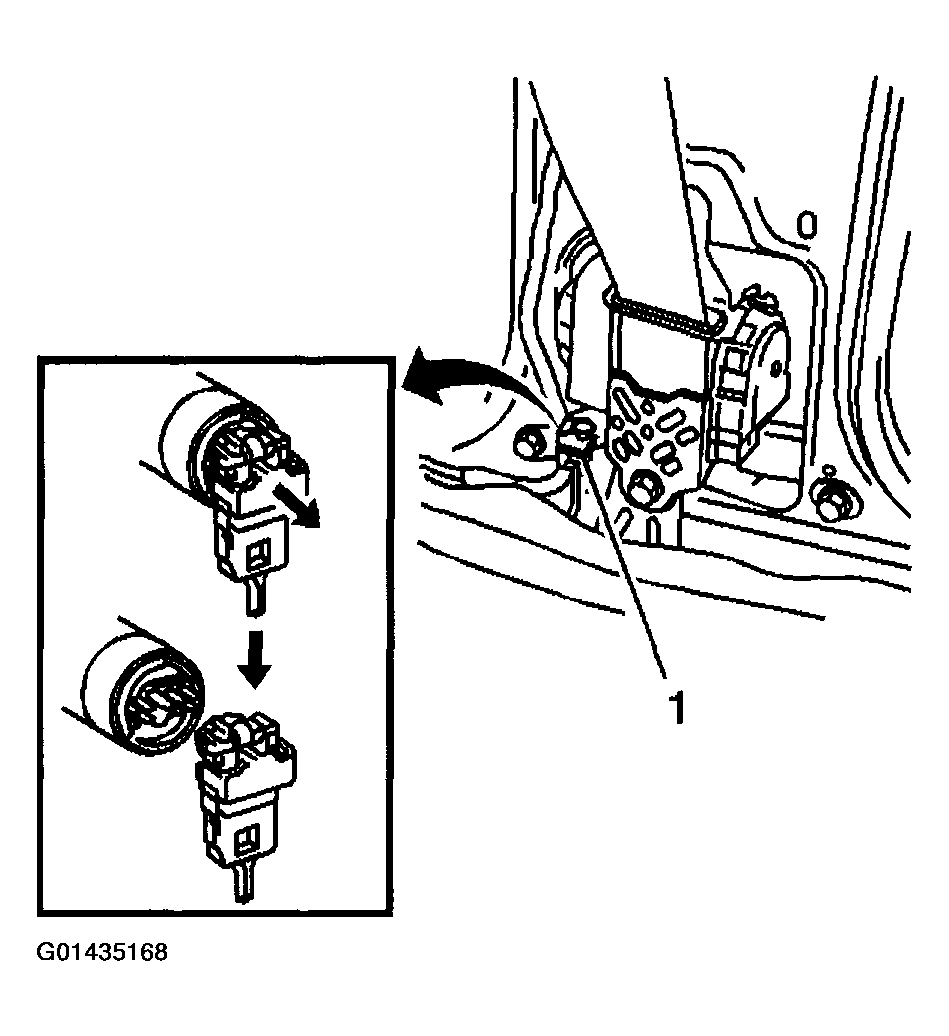

Fig 2: Connect The Pretensioner Electrical Connector (Right Front)
Courtesy of GENERAL MOTORS CORP.
Install the guide adjuster (1) bolt to the front seat shoulder belt.
Tighten

Tighten the bolt to 42 N.m (31 lb ft).
Install the front seat shoulder belt guide trim cover (3).

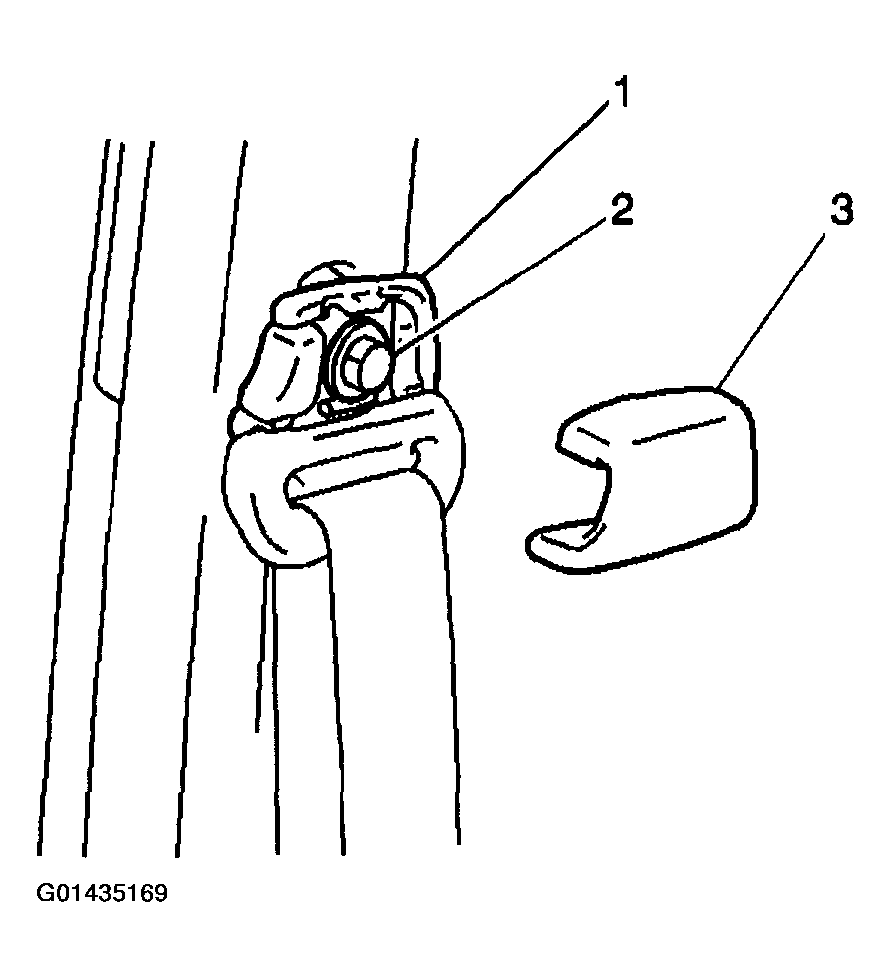

Fig 3: Installing Front Seat Shoulder Belt Guide Adjuster, Trim Cover & Bolt (Right Front)
Courtesy of GENERAL MOTORS CORP.
Install the center pillar lower trim panel. Refer to TRIM PANEL REPLACEMENT - LOWER CENTER PILLAR in Interior Trim.
Install the front side door sill trim plate. Refer to DOOR SILL PLATE REPLACEMENT in Interior Trim
Install the rear side door sill trim plate. Refer to DOOR SILL PLATE REPLACEMENT in Interior Trim.
Install the lower anchor bolt (5) to the front lower anchor.
Tighten

Tighten the bolt to 42 N.m (31 lb ft).
Install the front seat belt lower anchor bolt trim cover (4).
Enable the passenger seat SIR system. Refer to ZONE 9 in Air Bag Restraint Systems.

Fig 4: Installing Front Seat Belt Lower Anchor Bolt & Trim Cover (Right Front)
Courtesy of GENERAL MOTORS CORP.
