Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the right rear seat cushion lower bolts. Refer to SEAT CUSHION REPLACEMENT - REAR in Seats.
  2. Remove the rear seat belt retractor lower anchor bolt (5).
  3. Remove the right rear seat back panel. Refer to TRIM PANEL REPLACEMENT - REAR SEAT BACK (LEFT) or TRIM PANEL REPLACEMENT - REAR SEAT BACK (RIGHT) in Seats.
  4. Remove the seat belt guide (1).
  5. Pull seat belt lower anchor through rear seat back.
  6. Remove the following components from the vehicle:
    • The mounting bolt (3)
    • The rear seat center belt retractor (2)

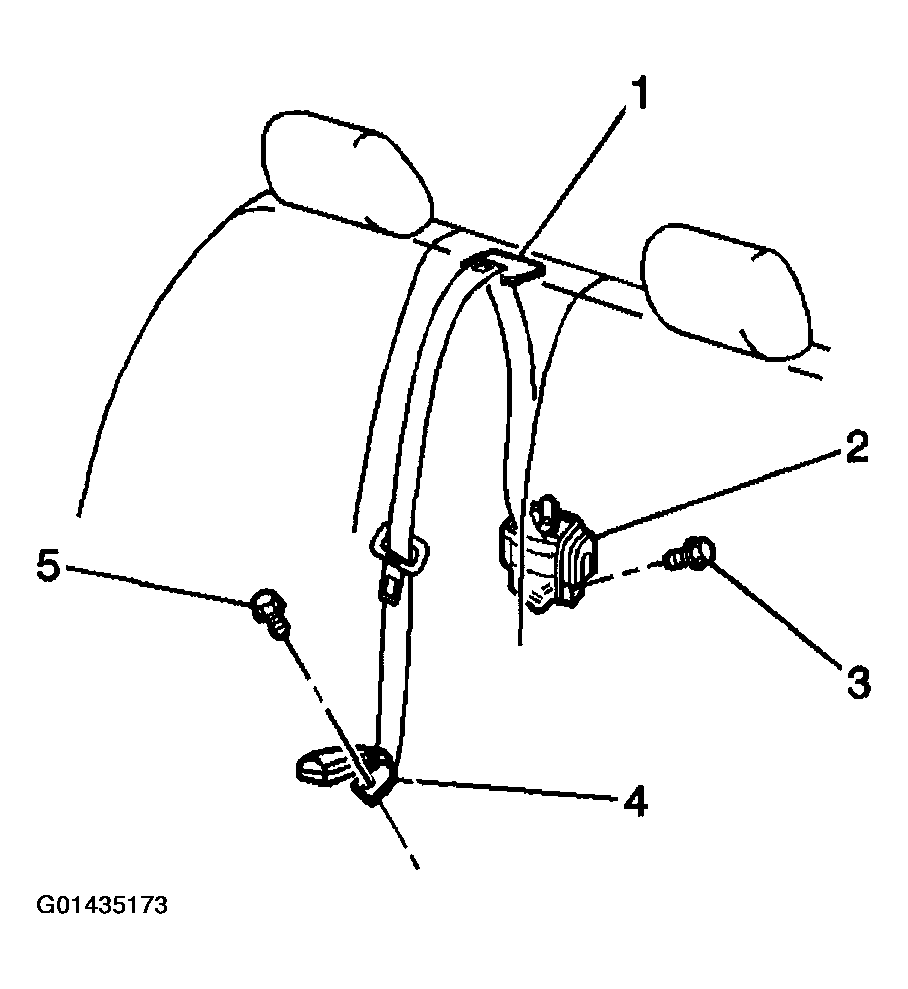

    Fig 1: Removing Seat Belt Retractor & Components (Center Rear)
    G01435173Courtesy of GENERAL MOTORS CORP.
