Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  1. Install the rear seat center belt retractor (2) to the seat back. Secure the retractor with the mounting bolt (3).

    Tighten

    Tighten the rear seat belt retractor mounting bolt to 42 N.m (31 lb ft).

  2. Install seat belt lower anchor through seat back.
  3. Install the rear seat belt retractor lower anchor bolt (5).

    Tighten

    Tighten the rear seat belt retractor lower anchor bolt to 42 N.m (31 lb ft).

  4. Install seat belt guide (1).

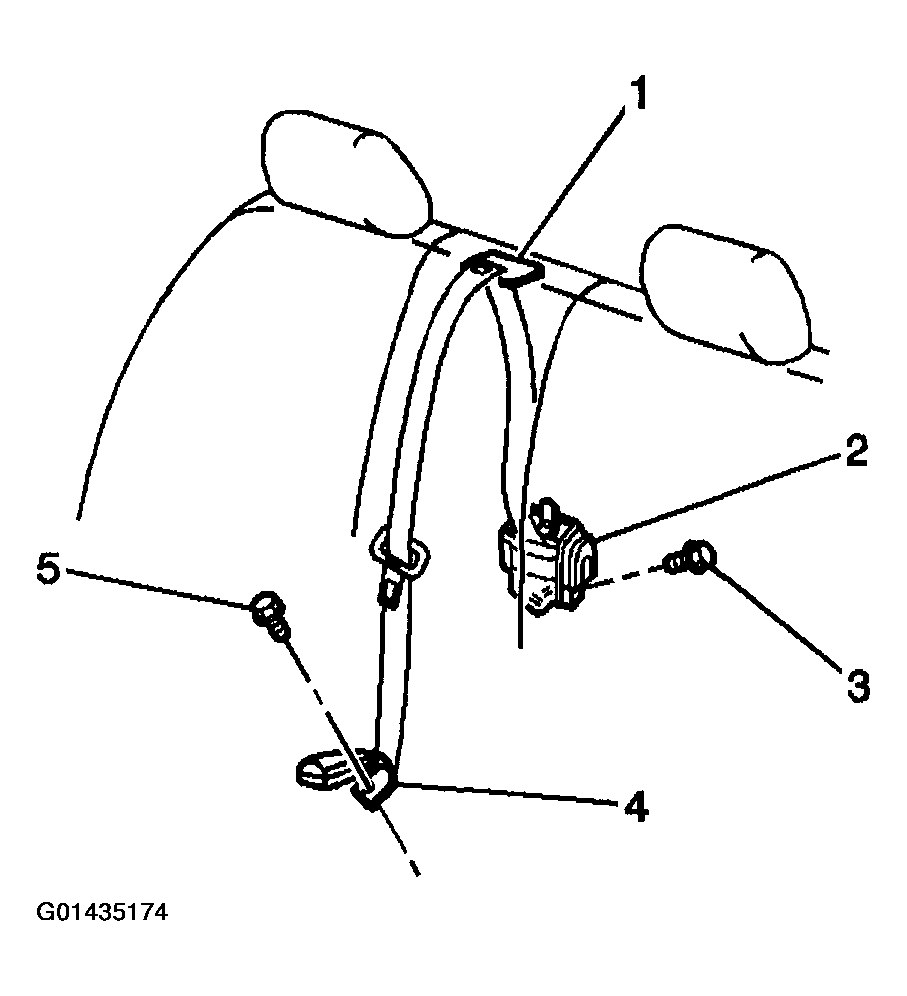

    Fig 1: Installing Seat Belt Retractor & Components (Center Rear)
    G01435174Courtesy of GENERAL MOTORS CORP.
  5. Install right rear seat back cover. Refer to TRIM PANEL REPLACEMENT - REAR SEAT BACK (LEFT) or TRIM PANEL REPLACEMENT - REAR SEAT BACK (RIGHT) in Seats.
  6. Install the right rear seat cushion lower bolts. Refer to SEAT CUSHION REPLACEMENT - REAR in Seats.
