Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  1. Install the front seat shoulder belt retractor tension adjuster (1) to the vehicle. Secure the adjuster with the bolt.

    Tighten

    Tighten the front seat shoulder belt retractor tension adjuster bolt to 42 N.m (31 lb ft).

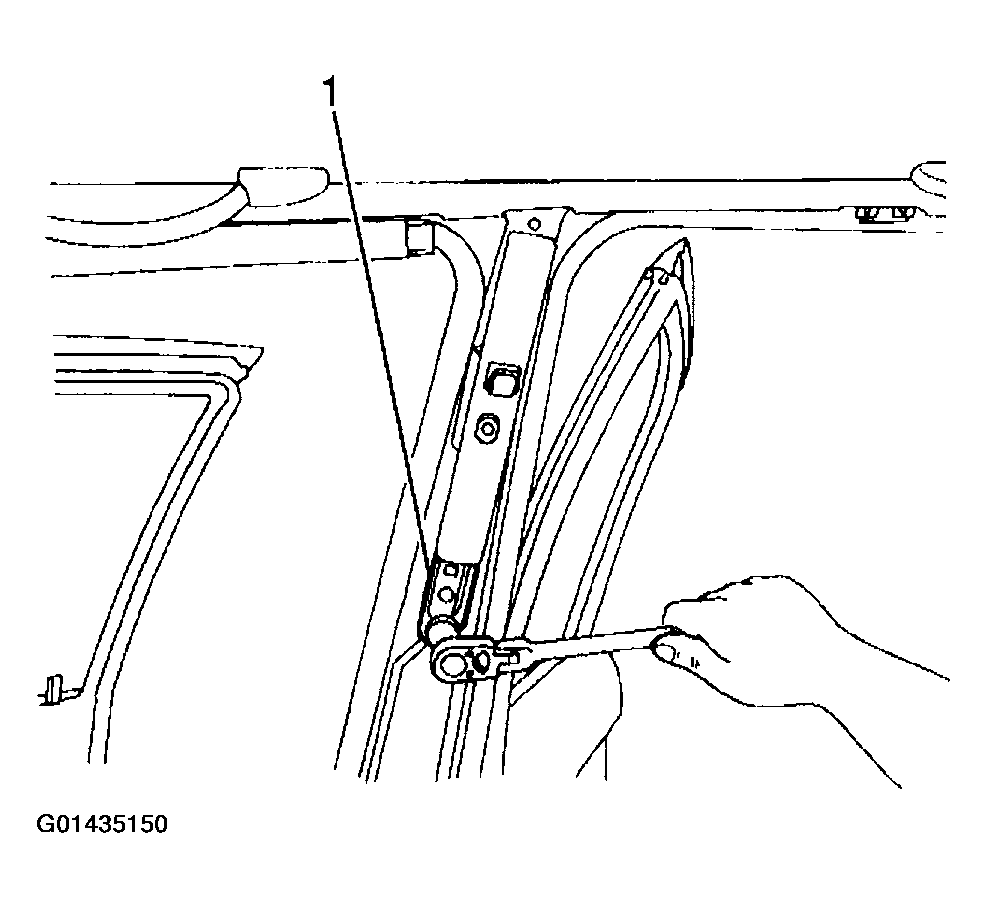

    Fig 1: Installing Front Seat Shoulder Belt Retractor Tension Adjuster (Driver Side)
    G01435150Courtesy of GENERAL MOTORS CORP.
  2. Install the center pillar upper trim panel. Refer to TRIM PANEL REPLACEMENT - UPPER CENTER PILLAR in Interior Trim.
  3. Install the center pillar lower trim panel. Refer to TRIM PANEL REPLACEMENT - LOWER CENTER PILLAR in Interior Trim.
  4. Install the seat belt shoulder guide. Refer to SEAT BELT RETRACTOR REPLACEMENT - LEFT FRONT .
  5. Install the front side door sill trim plate. Refer to DOOR SILL PLATE REPLACEMENT in Interior Trim.
  6. Install the rear side door sill trim plate. Refer to DOOR SILL PLATE REPLACEMENT in Interior Trim.
  7. Enable the drivers seat SIR System. Refer to ZONE 7 in Air Bag Restraint Systems.
