Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front floor rear console. Refer to CONSOLE REPLACEMENT - REAR FLOOR in Instrument Panel, Gages and Console.
  2. Position the front seat (1) in a forward position in order to gain access to the seat belt switch electrical connector (2).
  3. Disconnect the seat belt switch electrical connector (2).

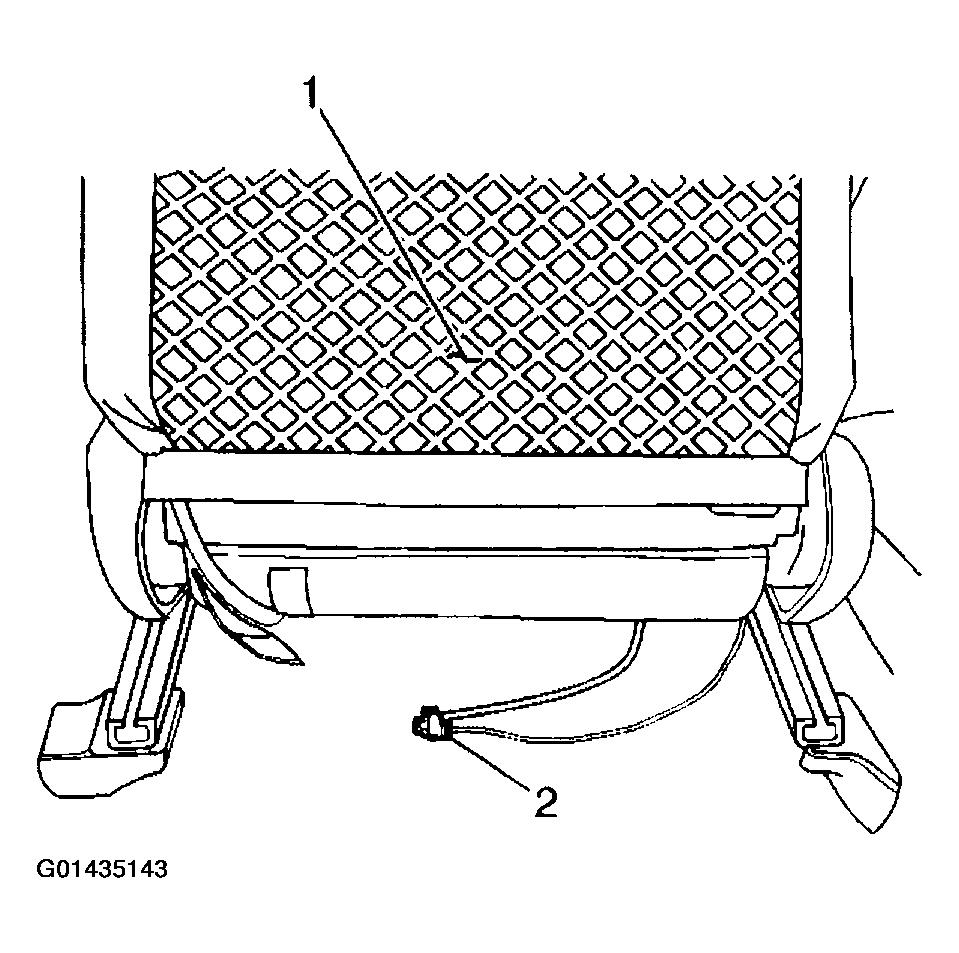

    Fig 1: Disconnecting Seat Belt Switch Electrical Connector - Right Front
    G01435143Courtesy of GENERAL MOTORS CORP.
  4. Remove the following components from the front seat:
    • The 2 screws (1)
    • The inner adjuster finish cover (4)
    • The bolt (3)
    • The seat belt buckle (2)
    Fig 2: Removing Seat Belt Buckle & Adjuster Finish Cover From Right Front Seat
    G01435144Courtesy of GENERAL MOTORS CORP.
