Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  1. Install the seat belt buckle (2) to the front seat. Secure the buckle with the bolt (3).

    Tighten

    Tighten the front seat belt buckle bolt to 42 N.m (31 lb ft).

  2. Install the inner adjuster finish cover (4) to the front seat. Secure the cover with the 2 screws (1).
    Fig 1: Installing Seat Belt Buckle & Adjuster Finish Cover To Right Front Seat
    G01435145Courtesy of GENERAL MOTORS CORP.
  3. Connect the seat belt switch electrical connector (2).
  4. Install the front floor rear console. Refer to CONSOLE REPLACEMENT - REAR FLOOR in Instrument Panel, Gages and Console.
  5. Return the front seat (1) to the upright position, if the left front buckle was removed.

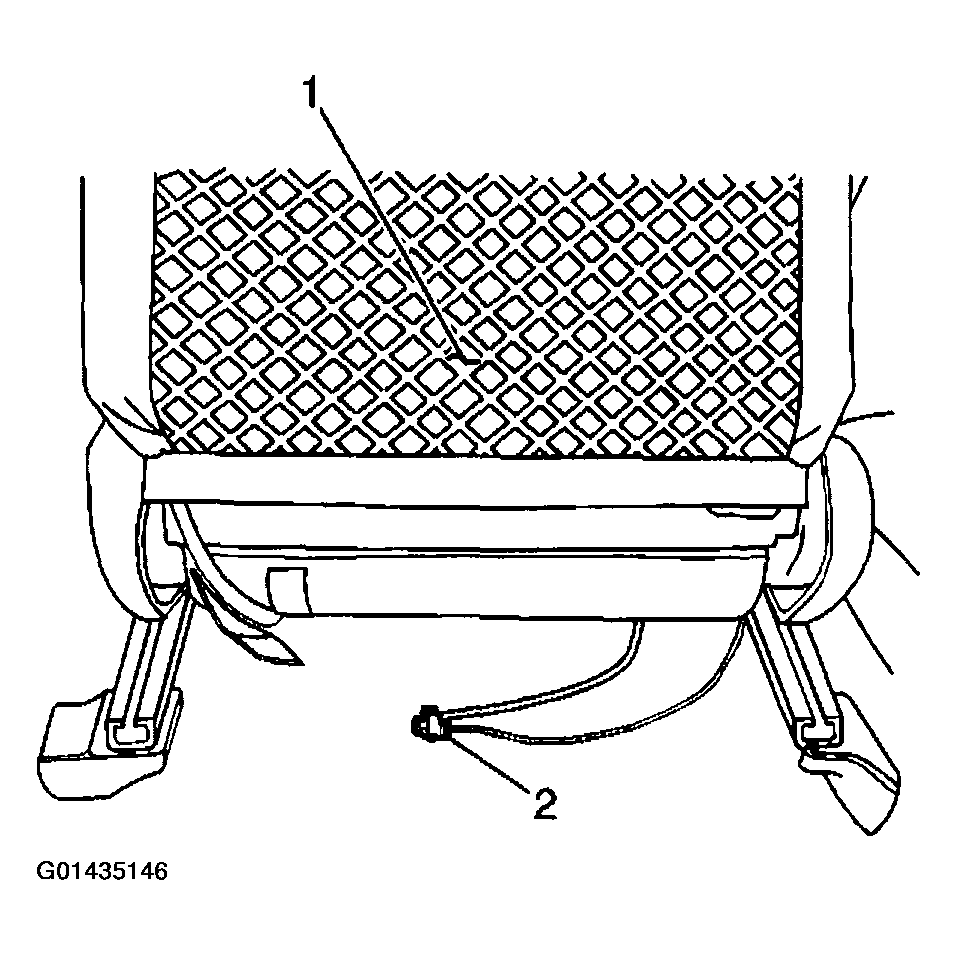

    Fig 2: Connecting Seat Belt Switch Electrical Connector - Right Front
    G01435146Courtesy of GENERAL MOTORS CORP.
