Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rear seat. Refer to SEAT REPLACEMENT - REAR in Seats.
  2. Remove the following components from the vehicle:
    • The anchor bolt
    • The rear seat belt buckle (1)

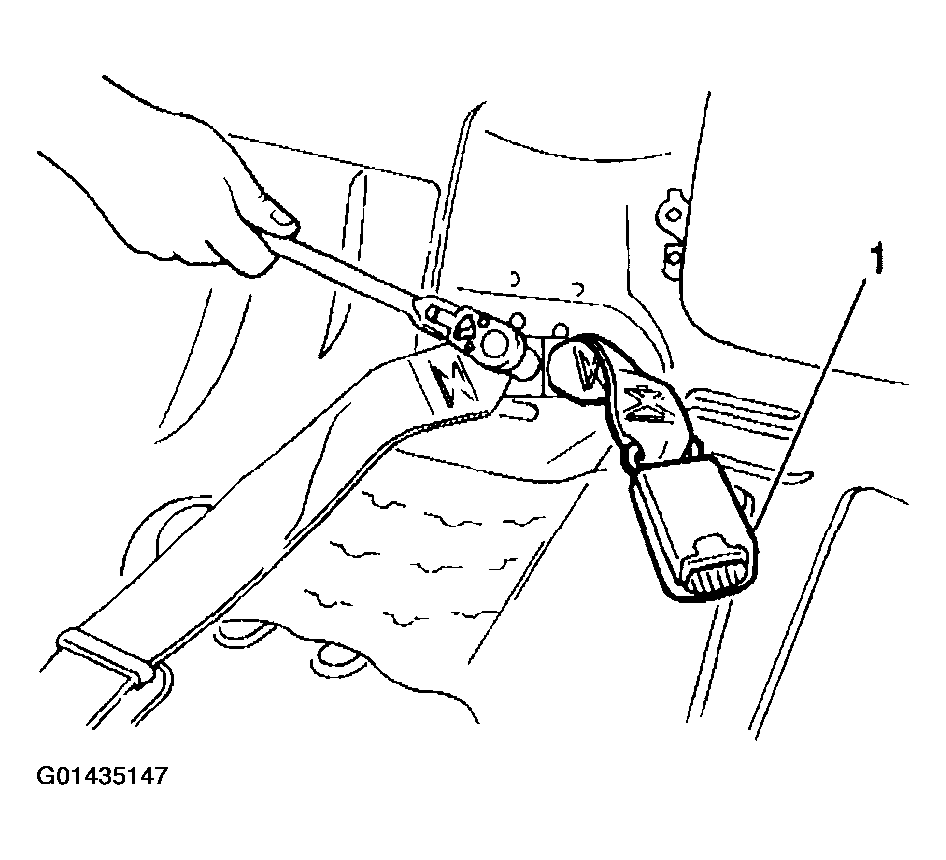

    Fig 1: Removing Rear Seat Belt Buckle
    G01435147Courtesy of GENERAL MOTORS CORP.
