Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  1. Install the seat belt buckle (1) to the front seat. Secure the buckle with the bolt.

    Tighten

    Tighten the front seat belt buckle bolt to 42 N.m (31 lb ft).

  2. Install the inner adjuster finish cover (2) to the front seat. Secure the cover with the screw.
    Fig 1: Installing Seat Belt Buckle & Adjuster Finish Cover To Left Front Seat
    G01435141Courtesy of GENERAL MOTORS CORP.
  3. Connect the seat belt switch electrical connector (2), on the left front buckle only.
  4. Install the front floor rear console. Refer to CONSOLE REPLACEMENT - REAR FLOOR in Instrument Panel, Gages and Console.
  5. Return the front seat (1) to the upright position, if the left front buckle was removed.

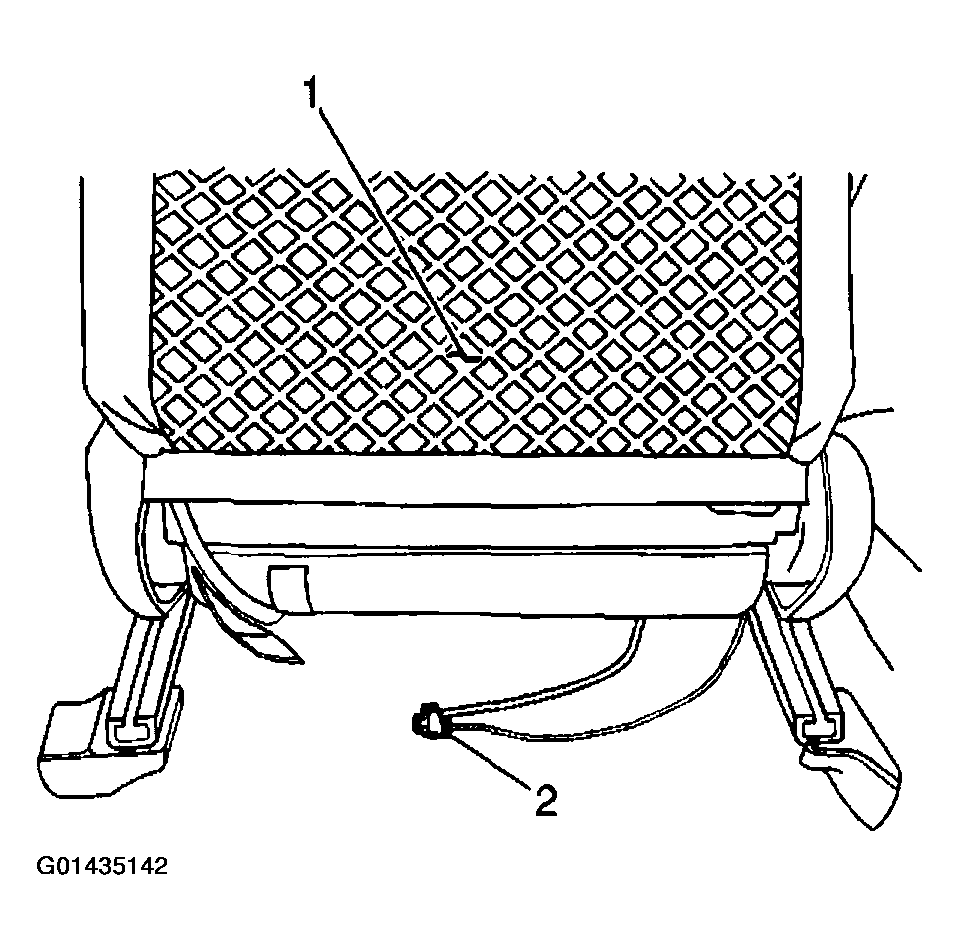

    Fig 2: Connecting Seat Belt Switch Electrical Connector - Left Front
    G01435142Courtesy of GENERAL MOTORS CORP.
