Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rear access panel (2).
  2. Remove the following components from the vehicle:
    • The bolt (3)
    • The child seat anchor bracket (4)

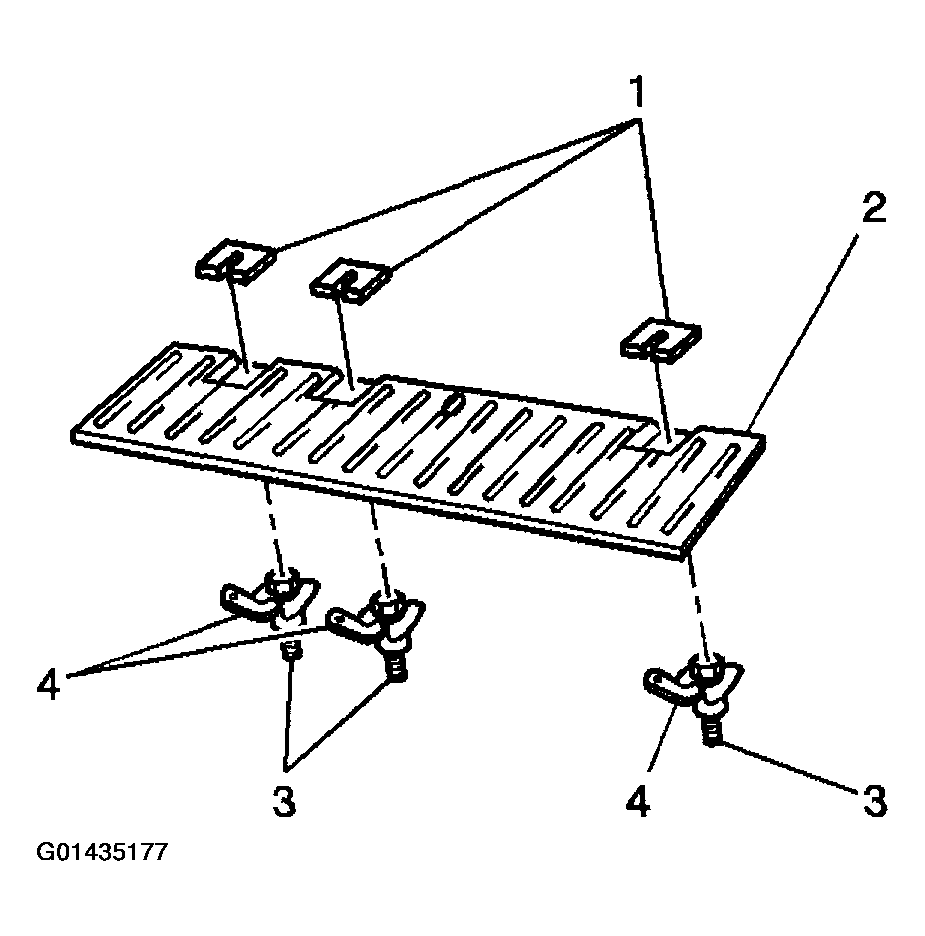

    Fig 1: Removing Rear Access Panel, Child Seat Anchor Bracket & Bolt
    G01435177Courtesy of GENERAL MOTORS CORP.
