Fasten Safety Belt Indicator/Chime Inoperative (Driver)

WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.

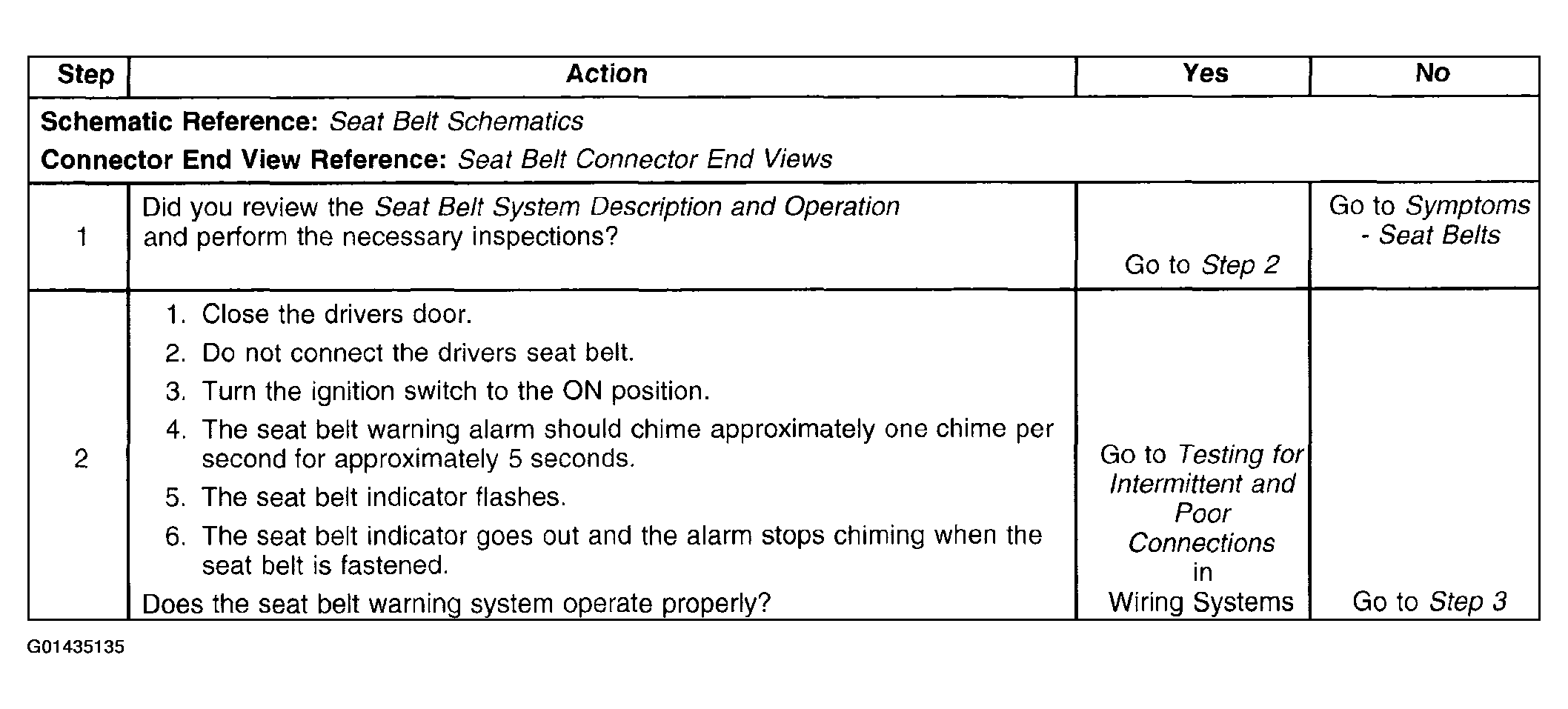

Fig 1: Fasten Safety Belt Indicator/Chime Inoperative (Driver) (Steps 1-2)
G01435135Courtesy of GENERAL MOTORS CORP.

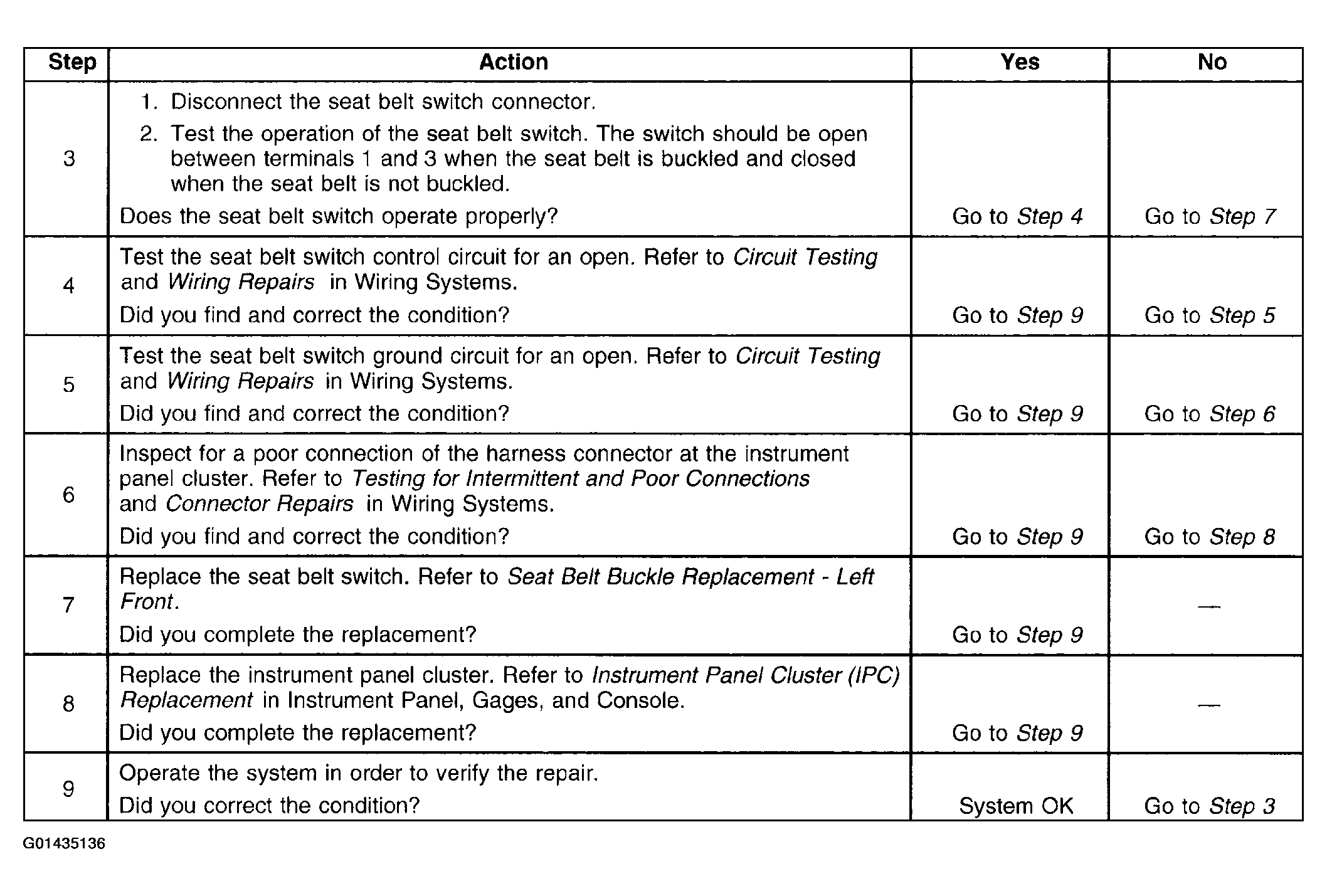

Fig 2: Fasten Safety Belt Indicator/Chime Inoperative (Driver) (Steps 3-9)
G01435136Courtesy of GENERAL MOTORS CORP.
