Fasten Safety Belt Indicator/Chime Always On (Passenger)

WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.

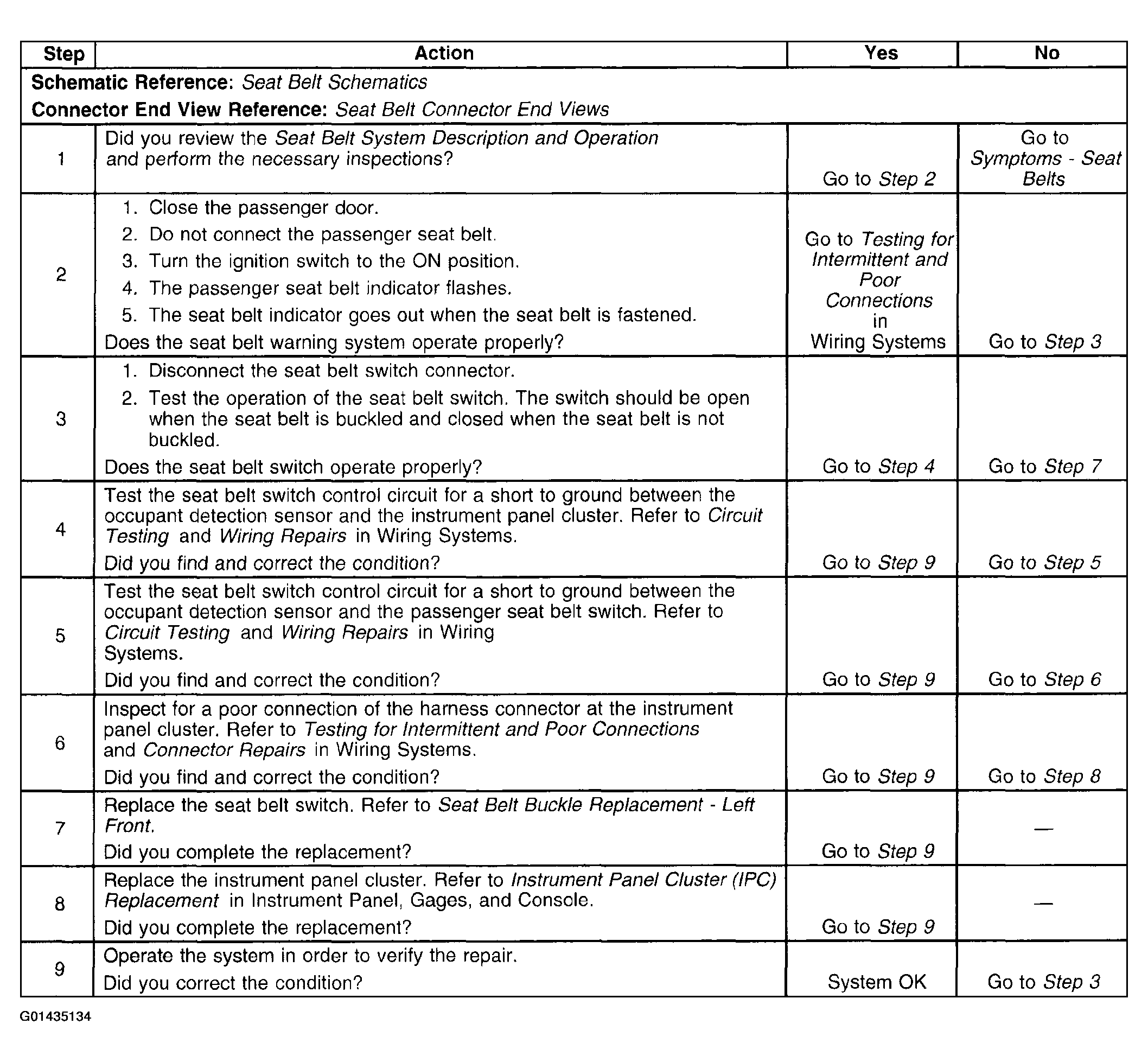

Fig 1: Fasten Safety Belt Indicator/Chime Always On (Passenger)
G01435134Courtesy of GENERAL MOTORS CORP.
