Body Rear End Schematics (Gauge and Door Fuses, Multifunction Alarm Module and Remote Control Door Lock Receiver)

WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.

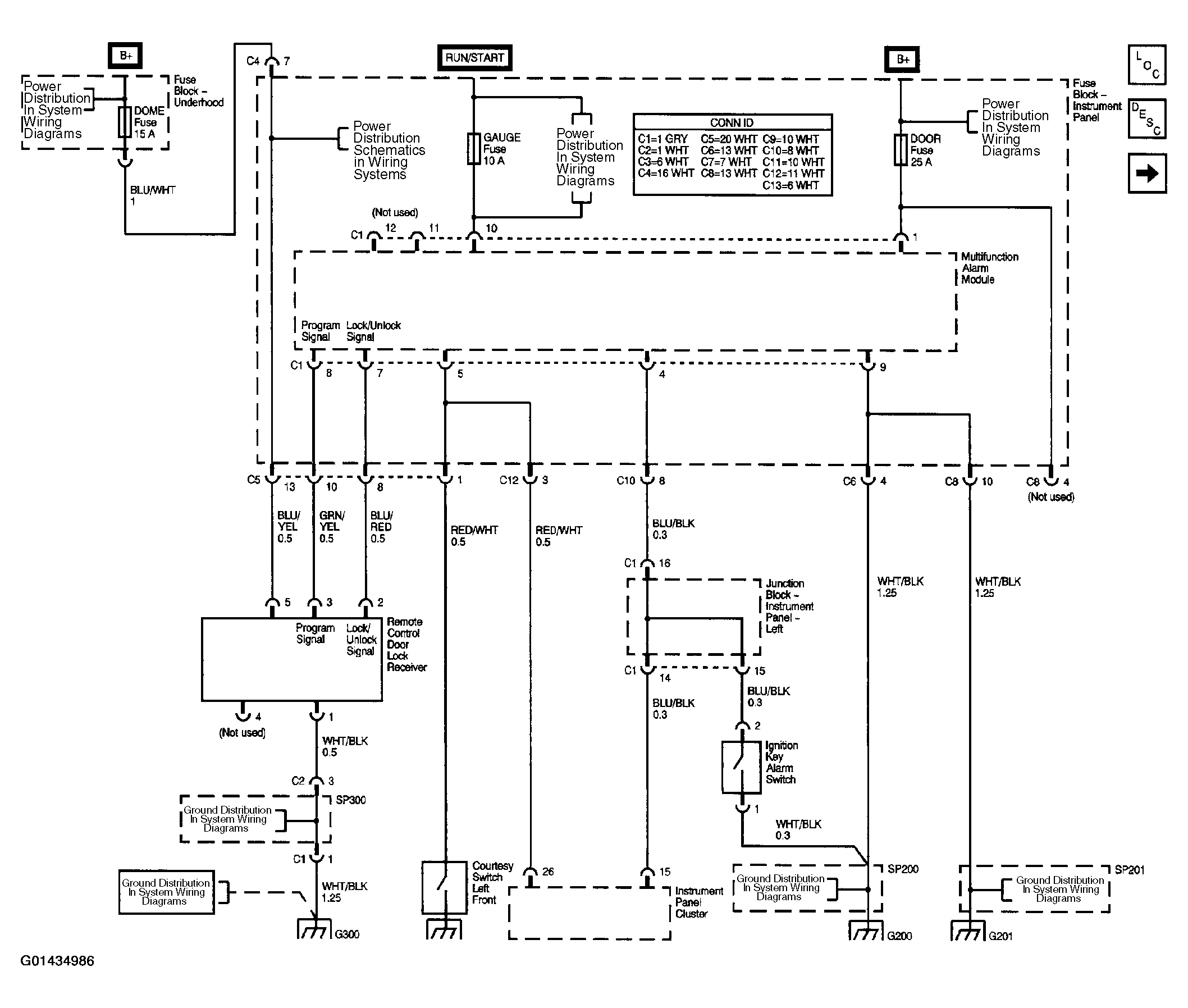

Fig 1: Body Rear End Schematics (Gauge And Door Fuses, Multifunction Alarm Module And Remote Control Door Lock Receiver)

Courtesy of GENERAL MOTORS CORP.

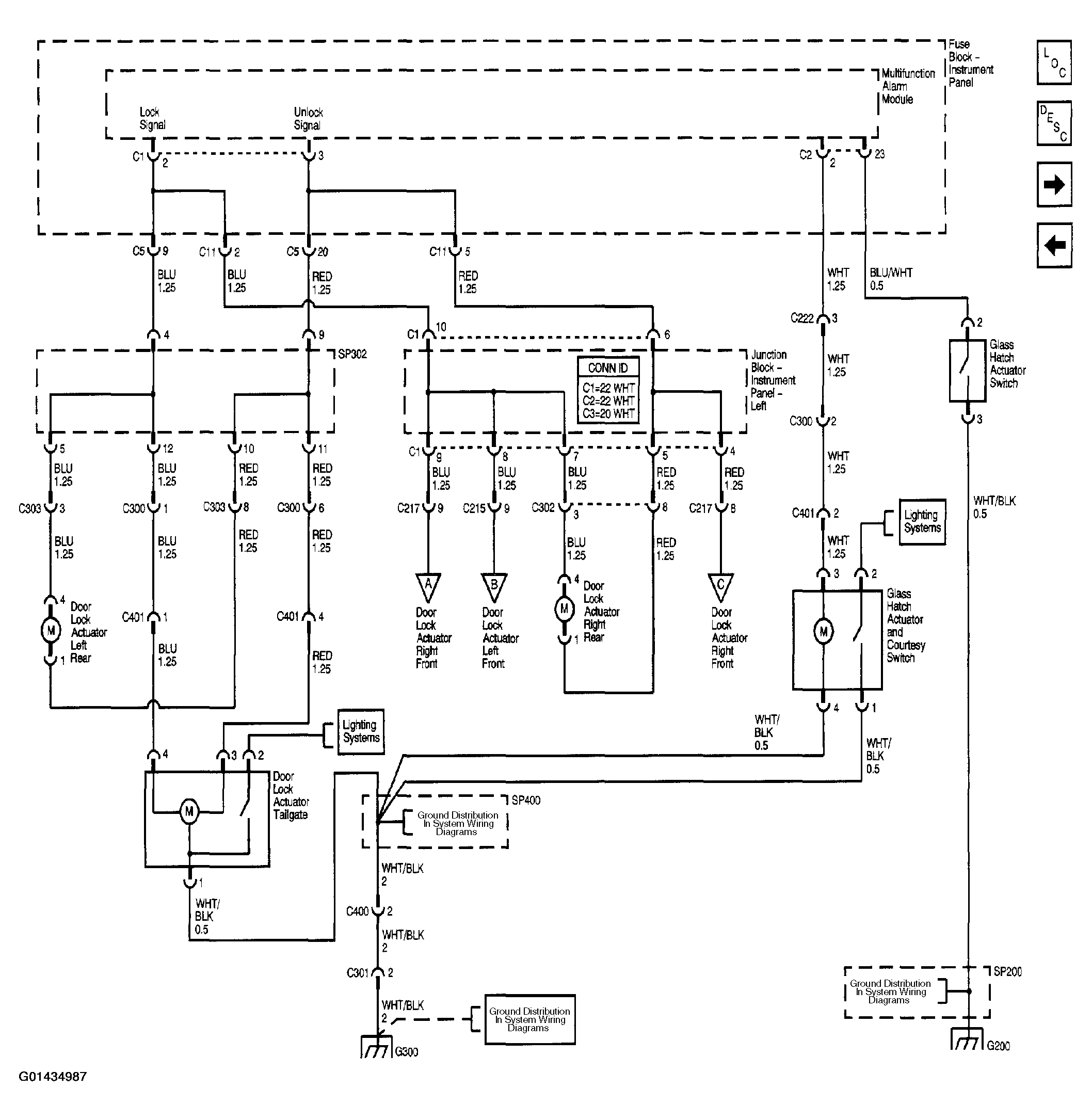

Fig 2: Body Rear End Schematics (Multifunction Alarm Module, Rear Door Lock Actuators, Glass Hatch And Tailgate Actuators)

Courtesy of GENERAL MOTORS CORP.

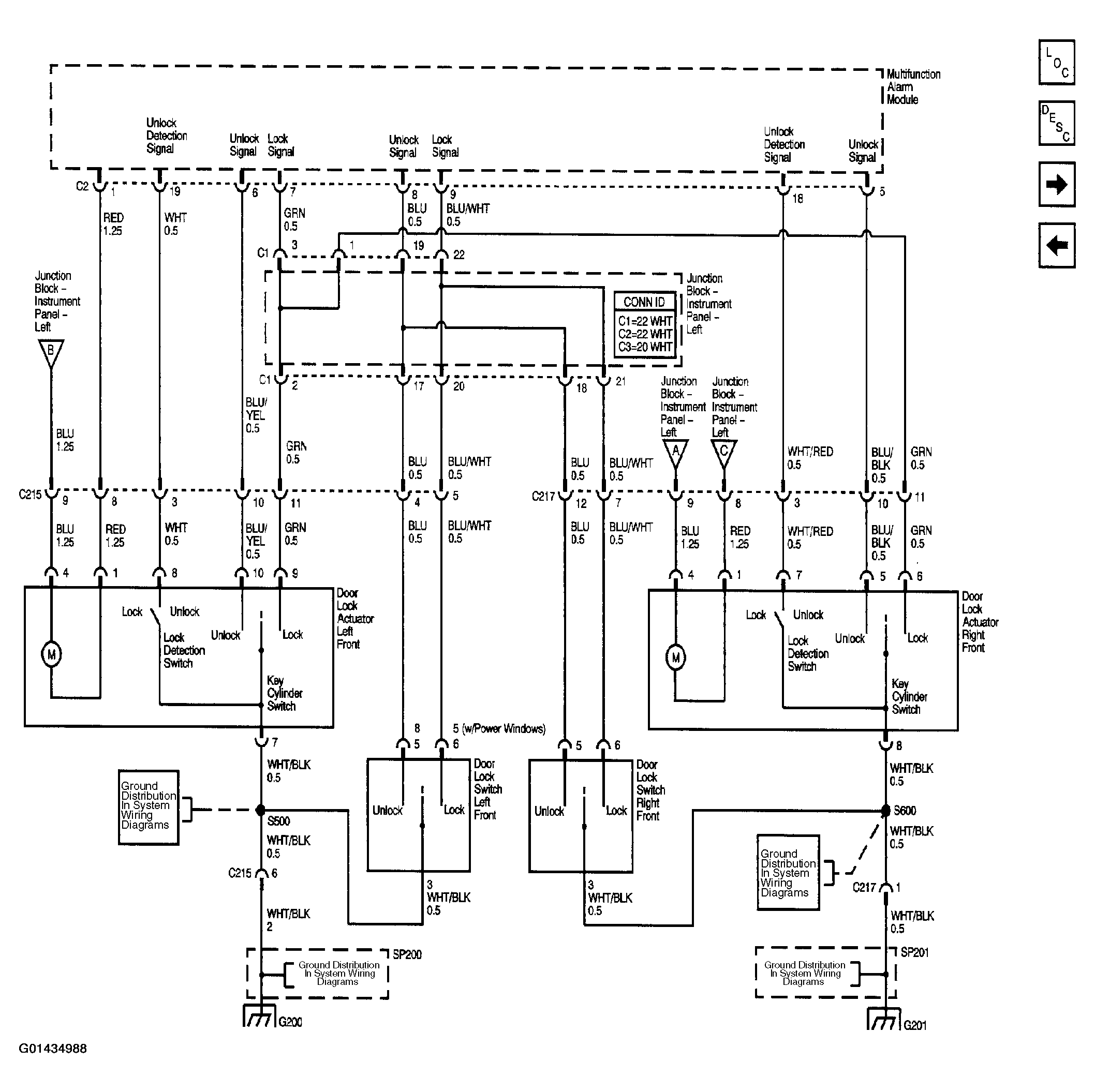

Fig 3: Body Rear End Schematics (Door Lock Switches And Front Door Lock Actuators)

Courtesy of GENERAL MOTORS CORP.

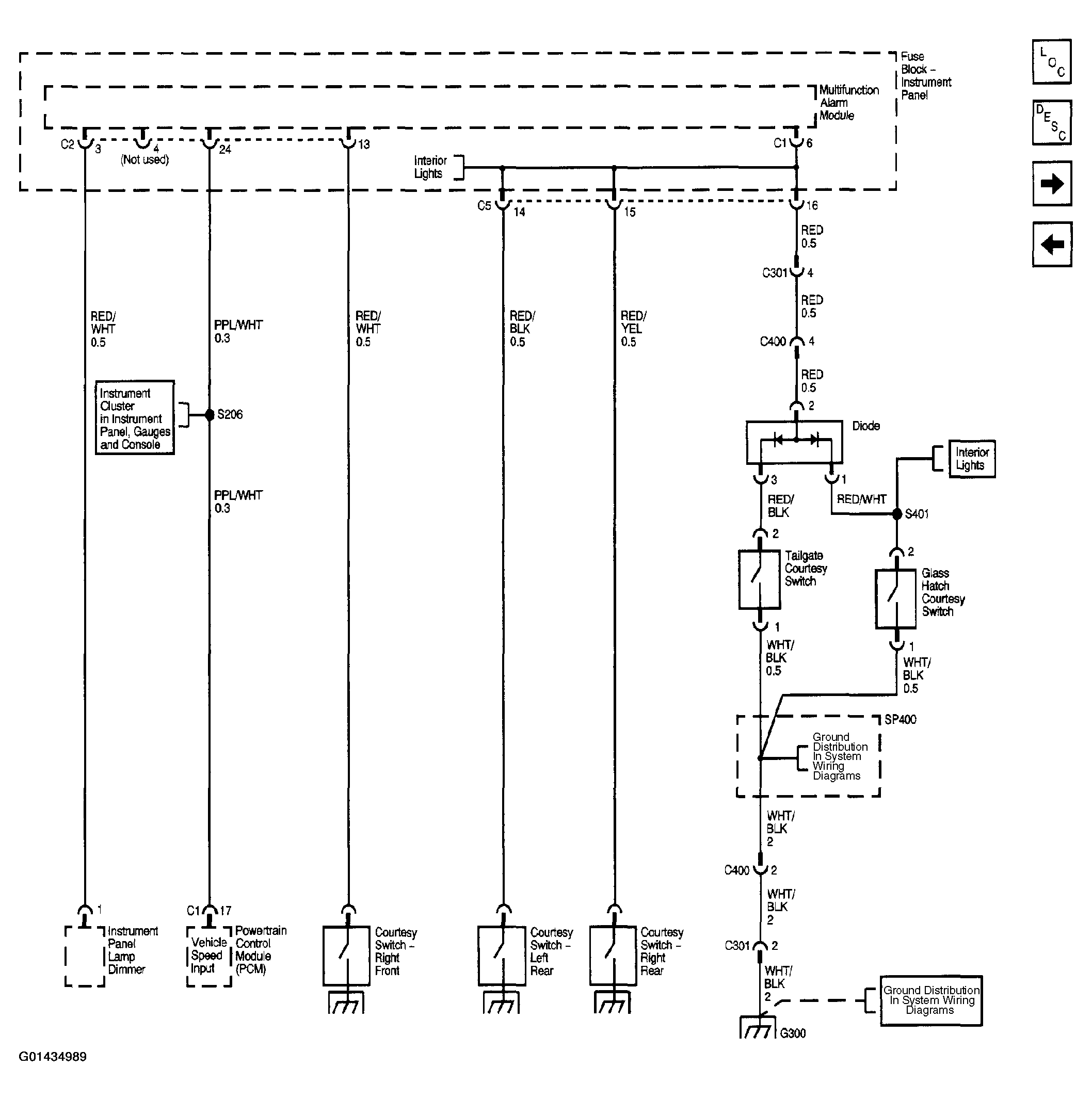

Fig 4: Body Rear End Schematics (Multifunction Alarm Module And Courtesy Switches)

Courtesy of GENERAL MOTORS CORP.

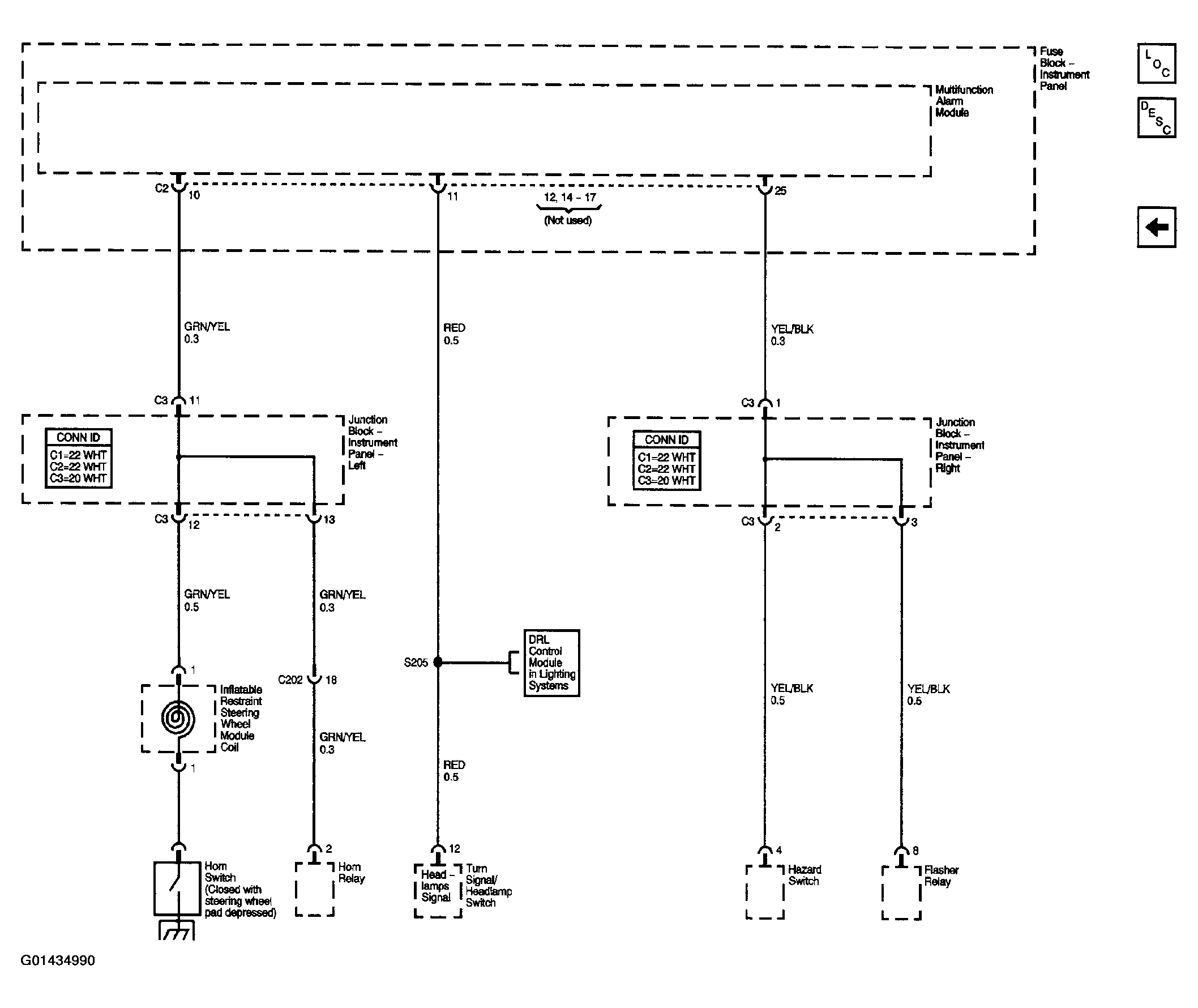

Fig 5: Body Rear End Schematics (Multifunction Alarm Module, Horn Switch, Hazard Switch)

Courtesy of GENERAL MOTORS CORP.
