Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.
  1. Route the upper wiring harness and boot (2) to the rear upper body (3).
  2. Pull down on left rear of headliner to route upper lift gate harness.
    Fig 1: Routing Upper Wiring Harness And Boot To Rear Upper Body
    G01435040Courtesy of GENERAL MOTORS CORP.
  3. Install the upper lift gate harness (1) with retainers (2) to the left inner quarter panel.

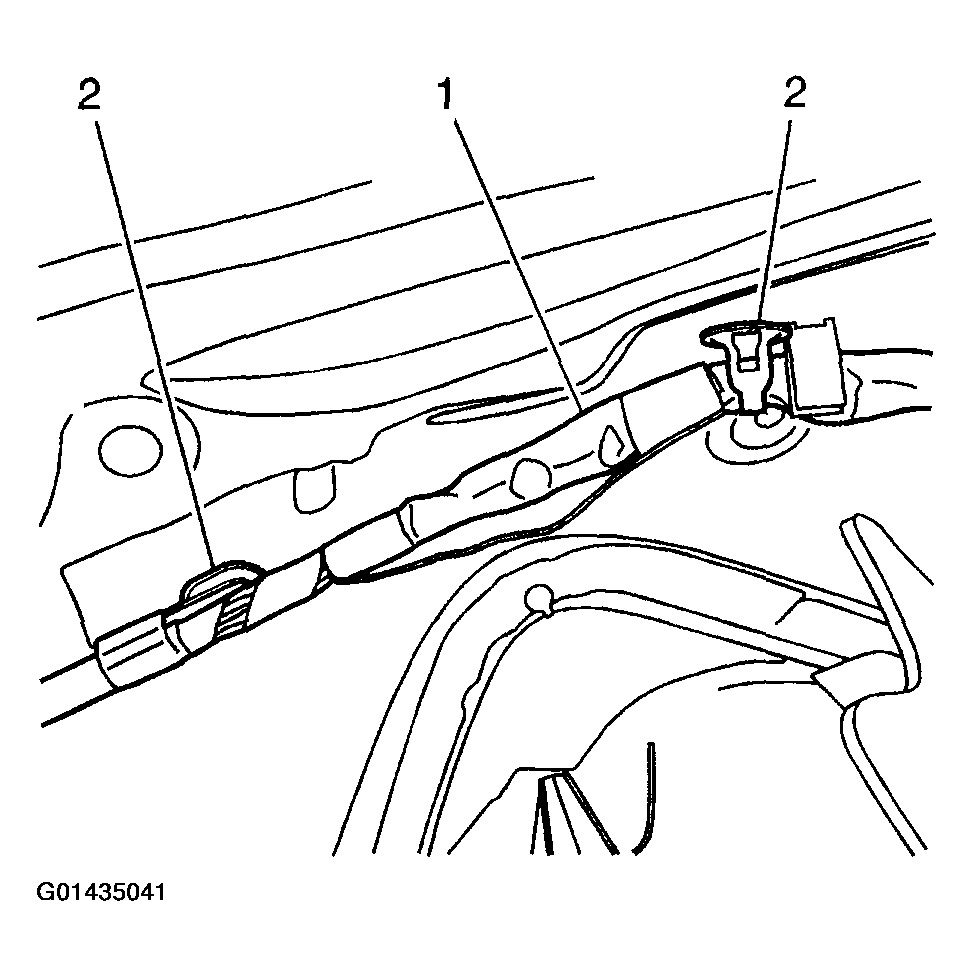

    Fig 2: Installing Upper Lift Gate Harness With Retainers To Left Inner Quarter Panel
    G01435041Courtesy of GENERAL MOTORS CORP.
  4. Connect lift gate wiring harness connectors (2) to the rear body wiring harness (3).

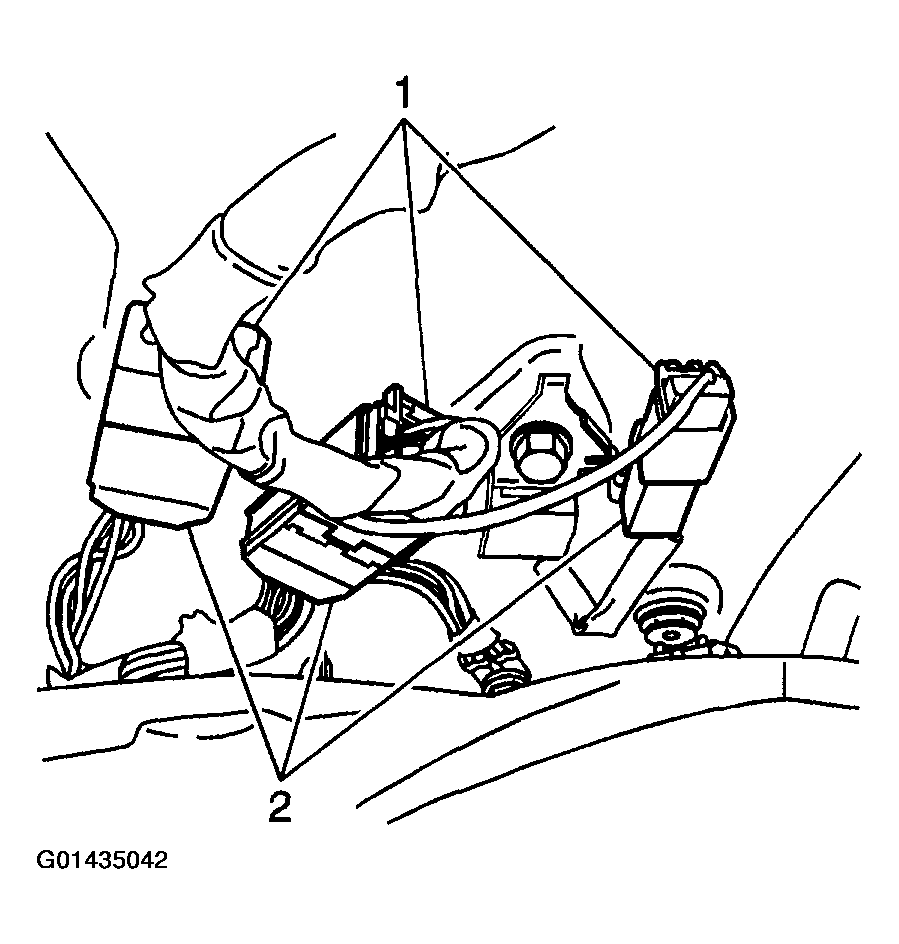

    Fig 3: Connecting Lift Gate Wiring Harness Connectors To Rear Body Wiring Harness
    G01435042Courtesy of GENERAL MOTORS CORP.
  5. Connect the upper lift gate harness connectors (1) to the rear body harness (2).
  6. Install the left upper quarter trim panel. Refer to TRIM PANEL REPLACEMENT - REAR QUARTER UPPER in Interior Trim.

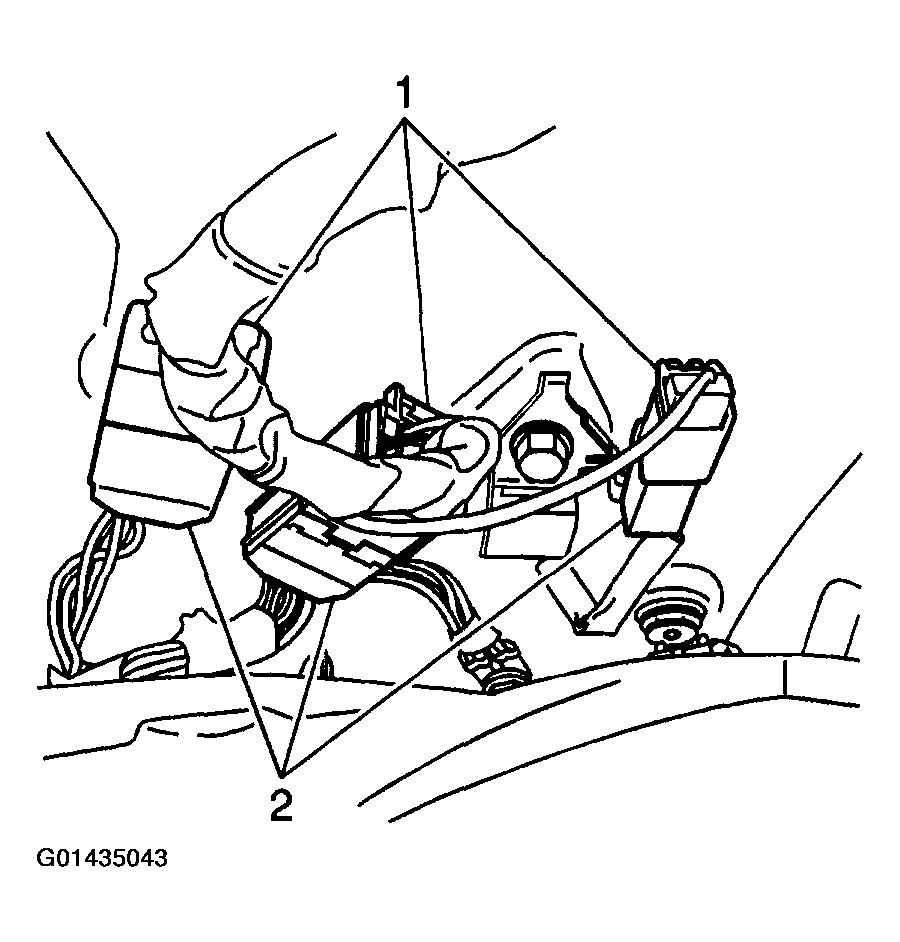

    Fig 4: Connecting Upper Lift Gate Harness Connectors To Rear Body Harness
    G01435043Courtesy of GENERAL MOTORS CORP.
  7. Route the upper lift gate harness through the upper lift gate (1) and install boot (2).

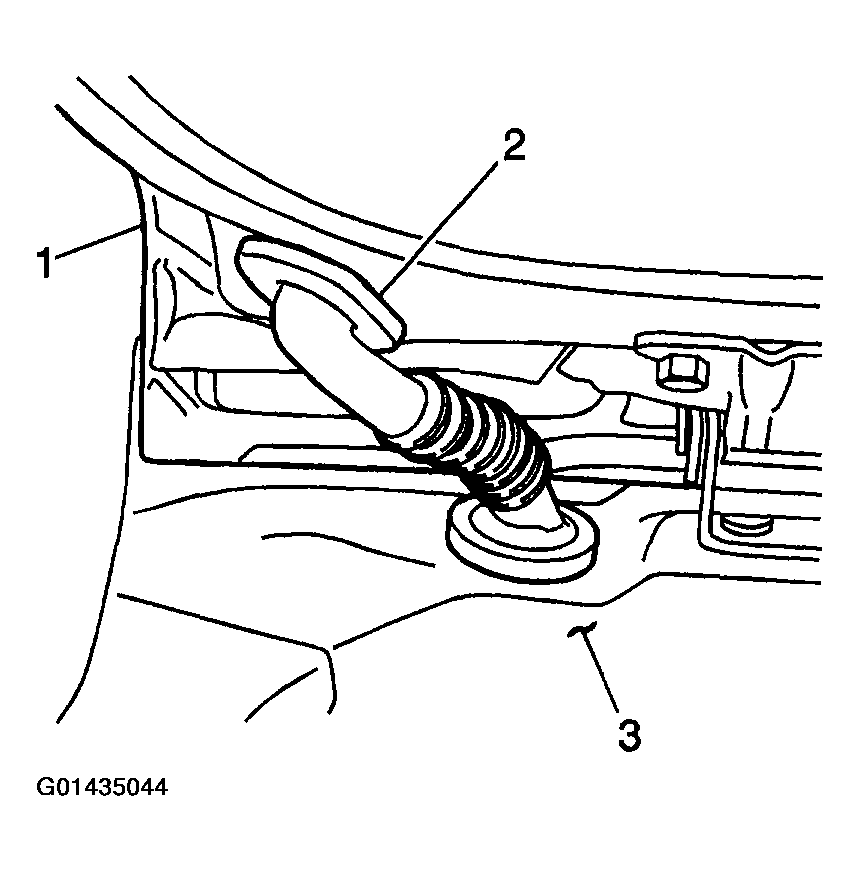

    Fig 5: Routing Upper Lift Gate Harness Through Upper Lift Gate And Installing Boot
    G01435044Courtesy of GENERAL MOTORS CORP.
  8. Install the lower lift gate wire harness with retainers to the lift gate.
  9. Connect the lower lift gate harness electrical connectors to the upper lift gate harness (1), (2).
  10. Connect the rear wiper relay electrical connector.
  11. Connect the rear wiper motor electrical connectors.
  12. Connect the lift gate latch electrical connectors.
  13. Connect the license plate lamp electrical connectors.
  14. Install the high mounted stop lamp. Refer to HIGH MOUNTED STOP LAMP REPLACEMENT in Lighting Systems.
  15. Install the lift gate trim panel. Refer to TRIM PANEL REPLACEMENT - LIFT GATE  in Body Rear End.
  16. Close the lift gate.
  17. Connect the battery negative cable. Refer to BATTERY NEGATIVE CABLE DISCONNECT/CONNECT PROCEDURE in Engine Electrical.

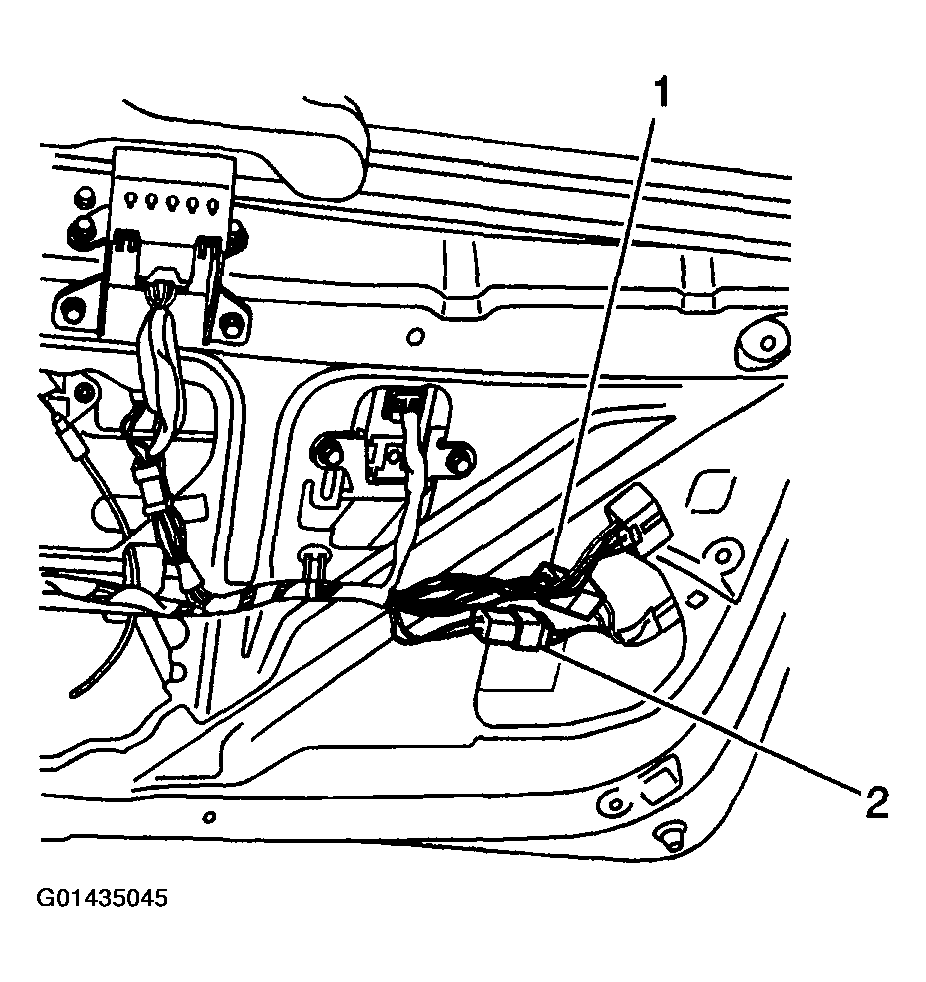

    Fig 6: Connecting Lower Lift Gate Harness Electrical Connectors To Upper Lift Gate Harness
    G01435045Courtesy of GENERAL MOTORS CORP.
