Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the liftgate window.
  2. Remove the lift gate window struts. Refer to STRUT REPLACEMENT - LIFT GATE WINDOW  .
  3. Starting at the corner of the liftgate flange, pull the weather-strip molding from the liftgate.

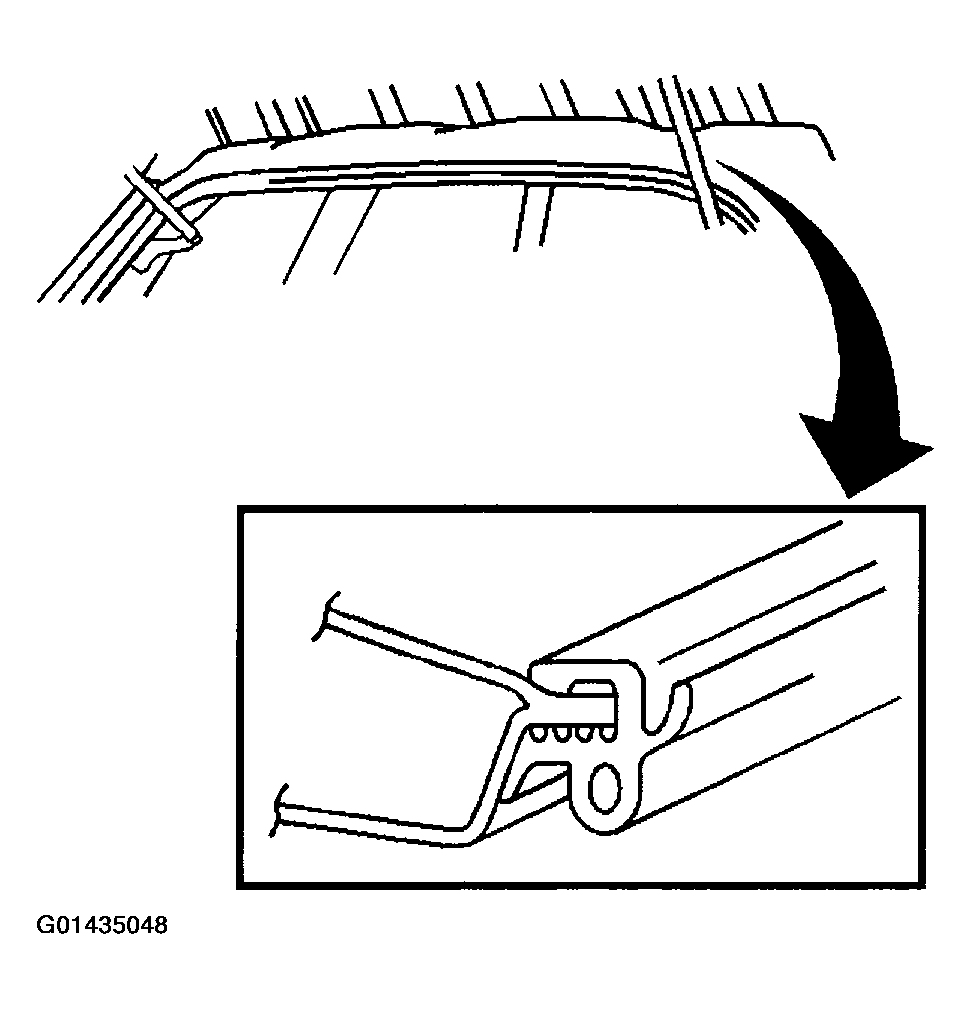

    Fig 1: Pulling Weather - Strip Molding From Liftgate
    G01435048Courtesy of GENERAL MOTORS CORP.
