Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.
  1. Push the ends of the weather-strip onto the liftgate flange corners.
  2. Push the weather-strip molding onto the flange along the entire length of the liftgate.
  3. Install the lift gate window struts. Refer to STRUT REPLACEMENT - LIFT GATE WINDOW  .
  4. Close the lift gate window.

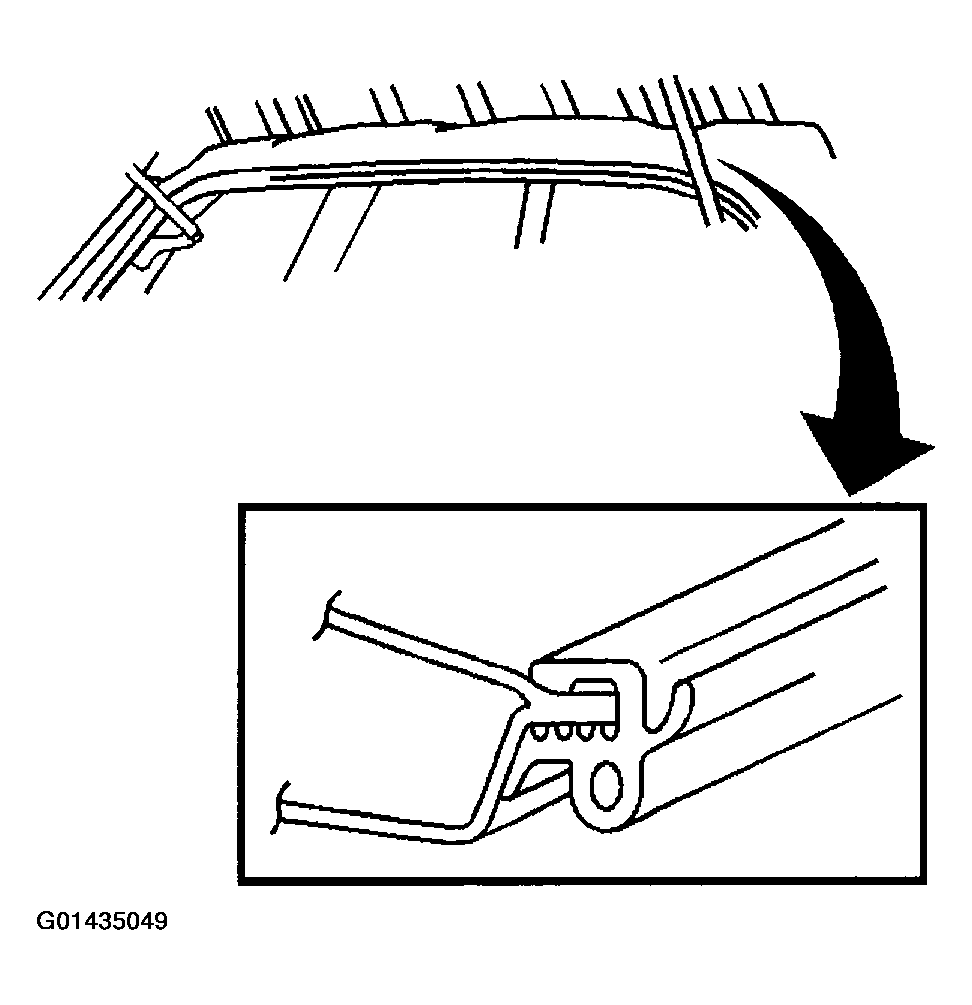

    Fig 1: Pushing Weather - Strip Molding Onto Flange Along Entire Length Of Liftgate
    G01435049Courtesy of GENERAL MOTORS CORP.
