Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the trim panel (4) to the lift gate (3).
  2. Install the service hole trim cover (2) to the liftgate trim panel (4).
  3. Install the trim panel lock cover (1) to the lift gate (3).
  4. Close the lift gate.

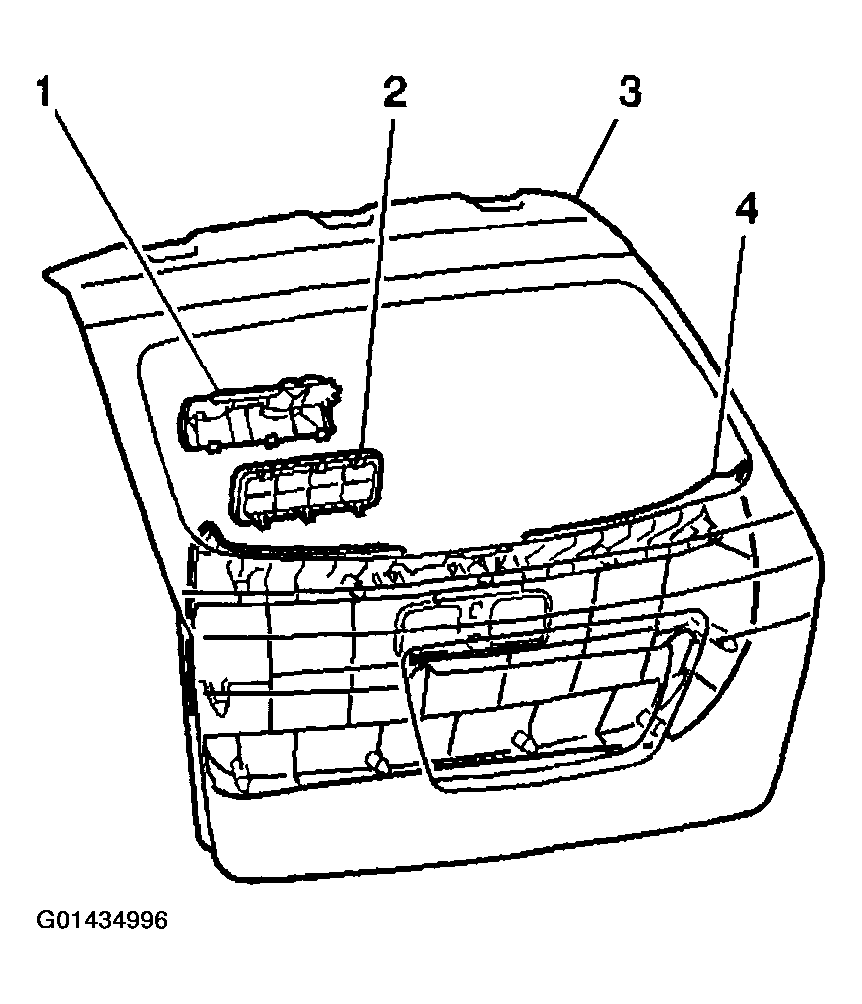

    Fig 1: Installing Trim Panel To Lift Gate
    G01434996Courtesy of GENERAL MOTORS CORP.
