Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: When a hood hold open device is being removed or installed, provide alternate support to avoid the possibility of damage to the vehicle or personal injury.

Open and support the liftgate window.
Lift up the retainer clips on the assist rods using a small flat-bladed tool.

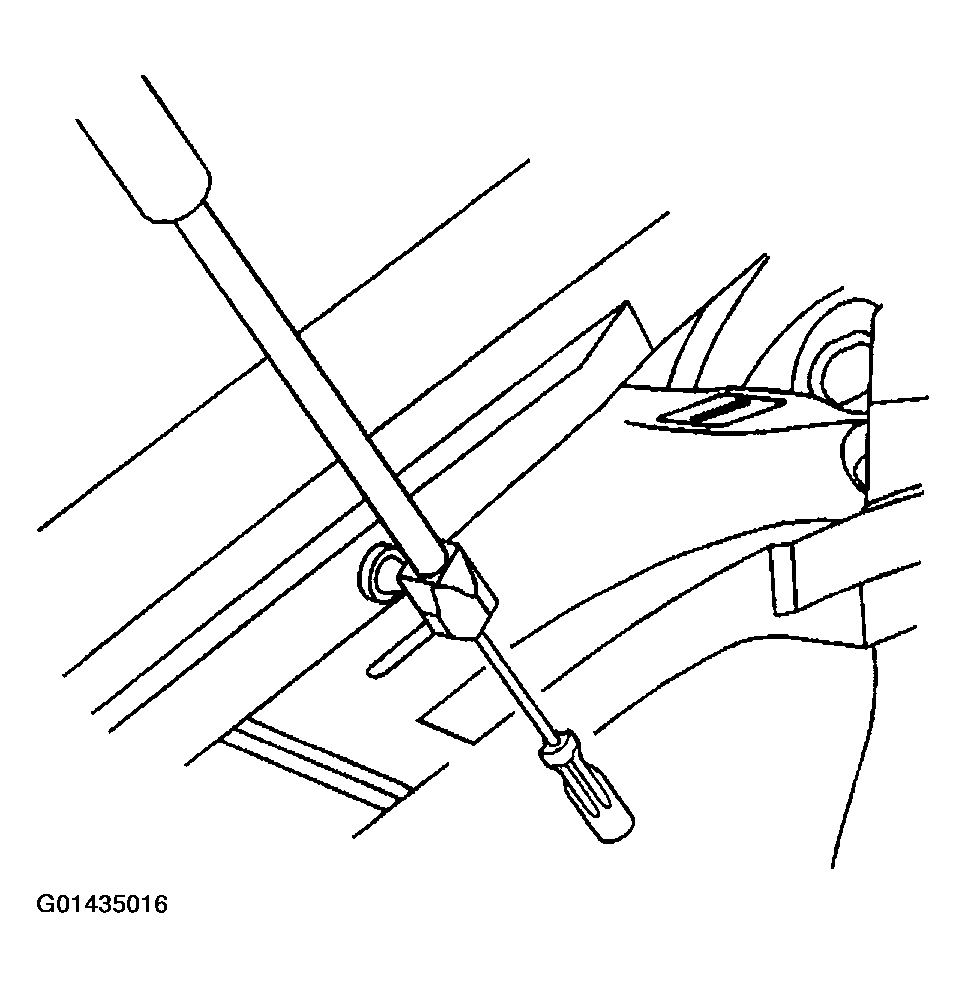

Fig 1: Lifting Up Retainer Clips On Assist Rods - Lift Gate Window Strut
Courtesy of GENERAL MOTORS CORP.
Remove the upper end of the assist rods from the ball joint.

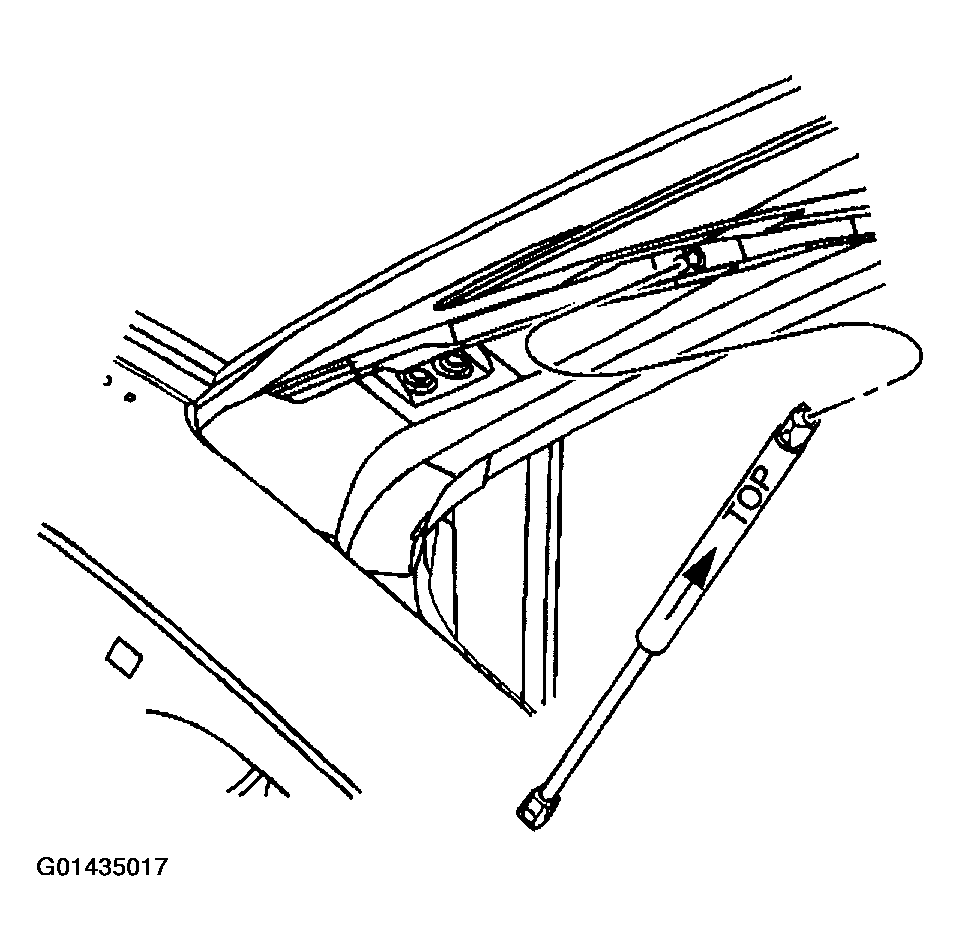

Fig 2: Removing Upper End Of Assist Rods From Ball Joint - Lift Gate Window Strut
Courtesy of GENERAL MOTORS CORP.
Remove the lower end of the assist rods from the ball joint.
Remove the assist rods from the liftgate window.

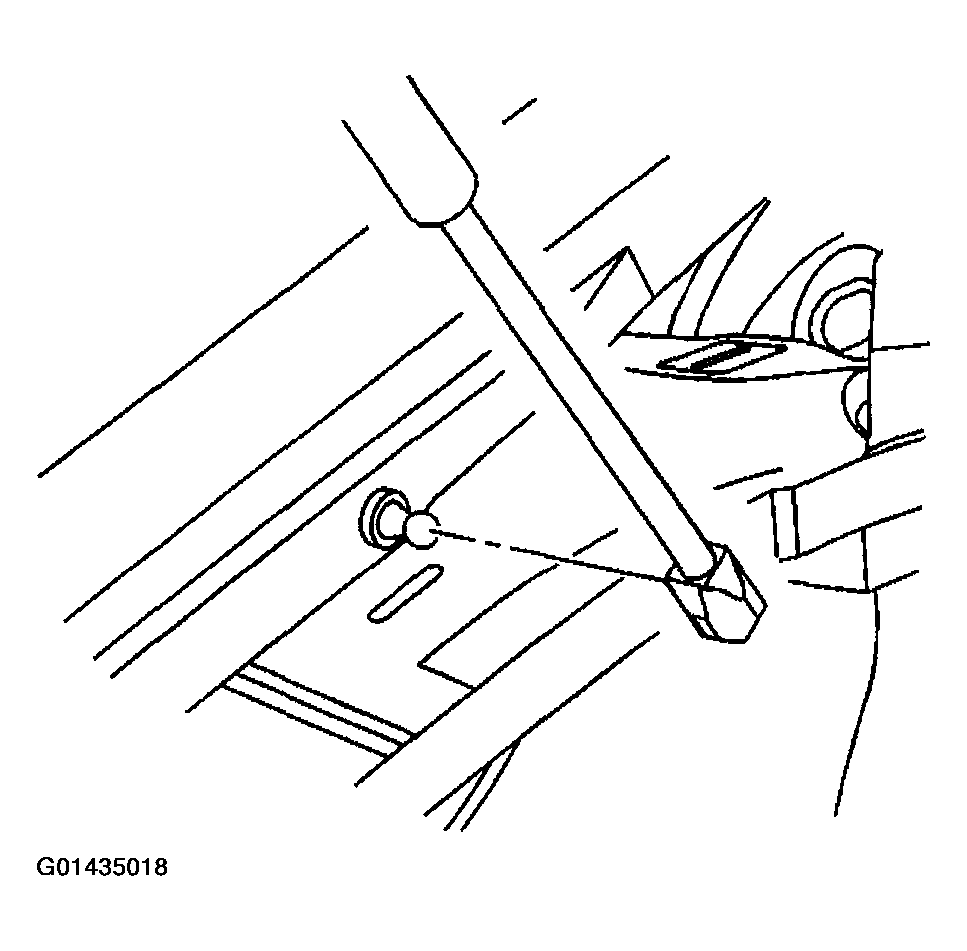

Fig 3: Removing Lower End Of Assist Rods From Ball Joint - Lift Gate Window Strut
Courtesy of GENERAL MOTORS CORP.
