Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the assist rods to the liftgate window.
  2. Install the upper end of the assist rods to the ball joint. Press in to place until fully seated.

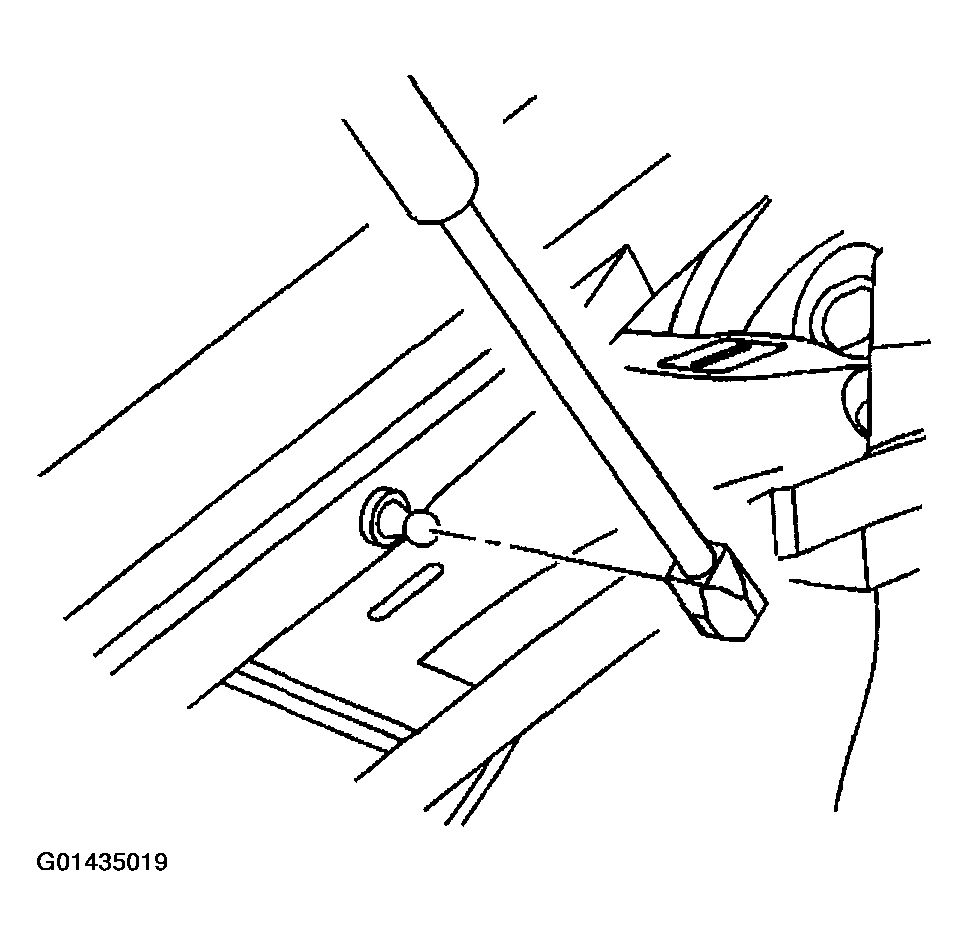

    Fig 1: Installing Upper End Of Assist Rods To Ball Joint - Lift Gate Window Strut
    G01435019Courtesy of GENERAL MOTORS CORP.
  3. Install the lower end of the assist rods to the ball joint. Press in to place until fully seated.
  4. Remove the support from the liftgate window.
  5. Close the liftgate window.

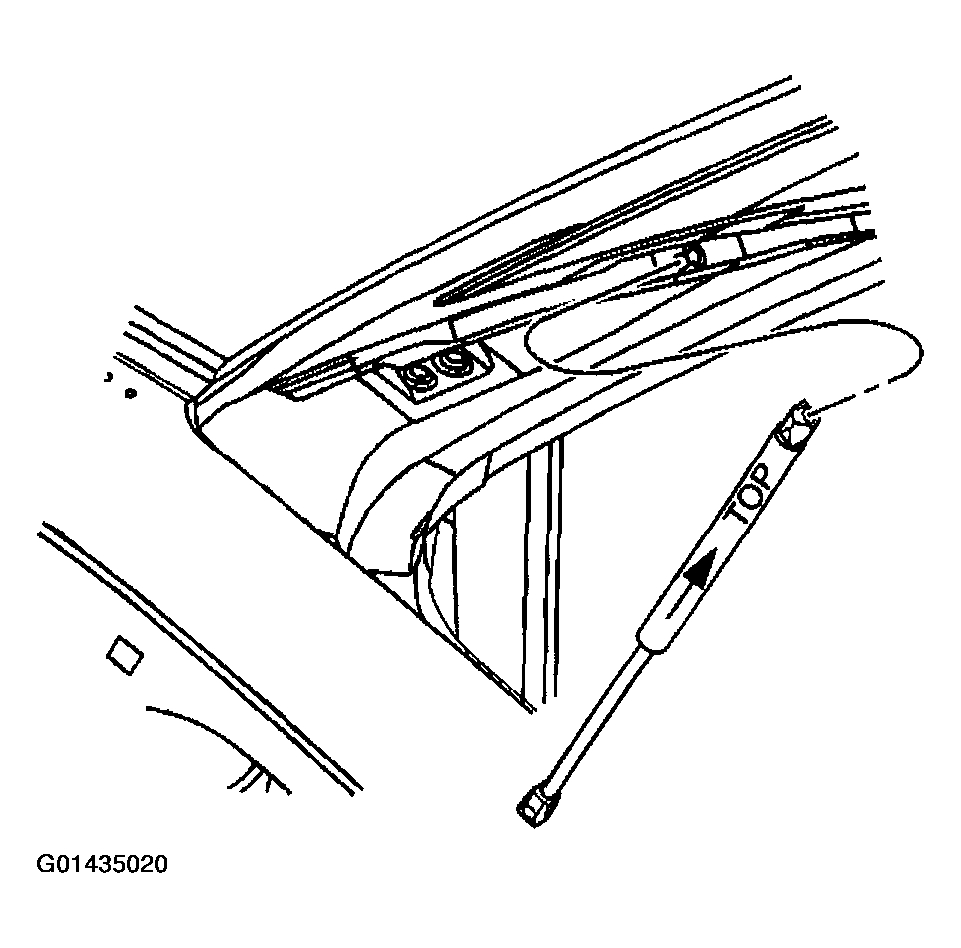

    Fig 2: Installing Lower End Of Assist Rods To Ball Joint - Lift Gate Window Strut
    G01435020Courtesy of GENERAL MOTORS CORP.
