Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rear bumper fascia. Refer to FASCIA REPLACEMENT - REAR BUMPER in Bumpers.
  2. Remove the quarter outer panel pressure relief valve (1) from the vehicle by releasing the retaining tabs.

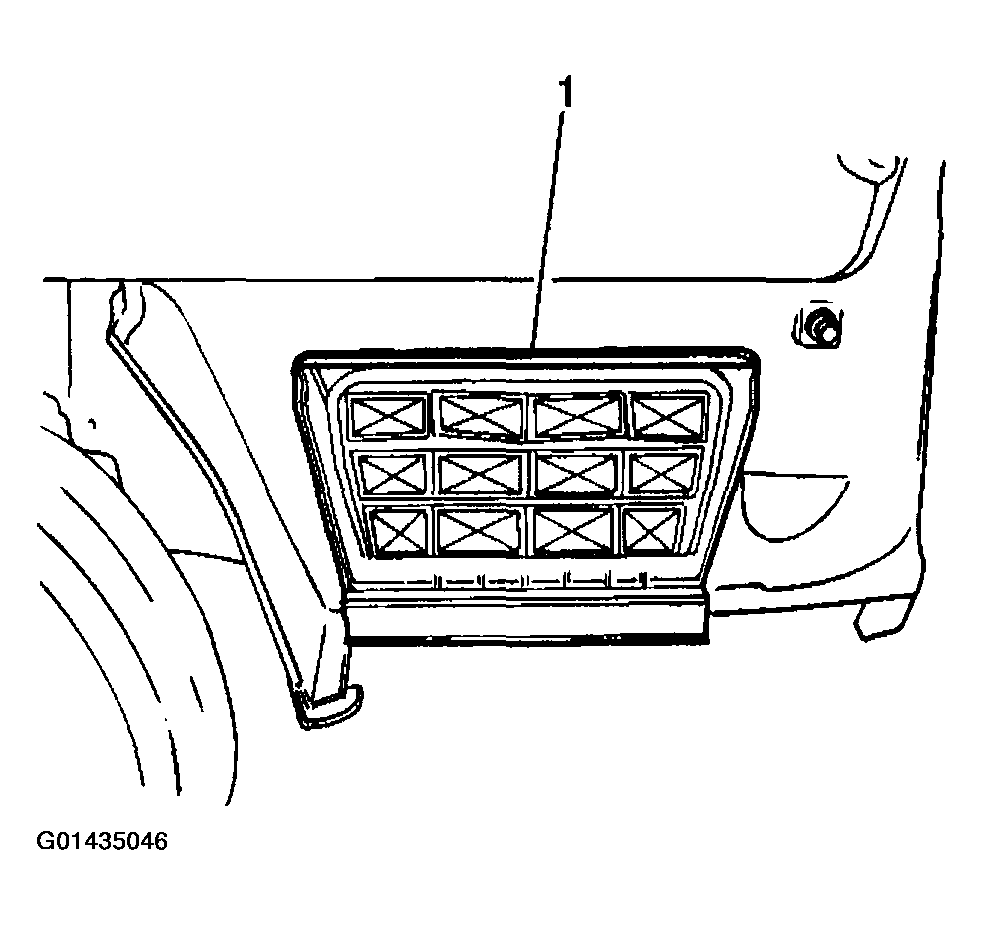

    Fig 1: Removing Quarter Outer Panel Pressure Relief Valve From Vehicle
    G01435046Courtesy of GENERAL MOTORS CORP.
