Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the quarter outer panel pressure relief valve (1). Ensure that the retaining tabs are fully engaged.
  2. Install the rear bumper fascia. Refer to FASCIA REPLACEMENT - REAR BUMPER in Bumpers.

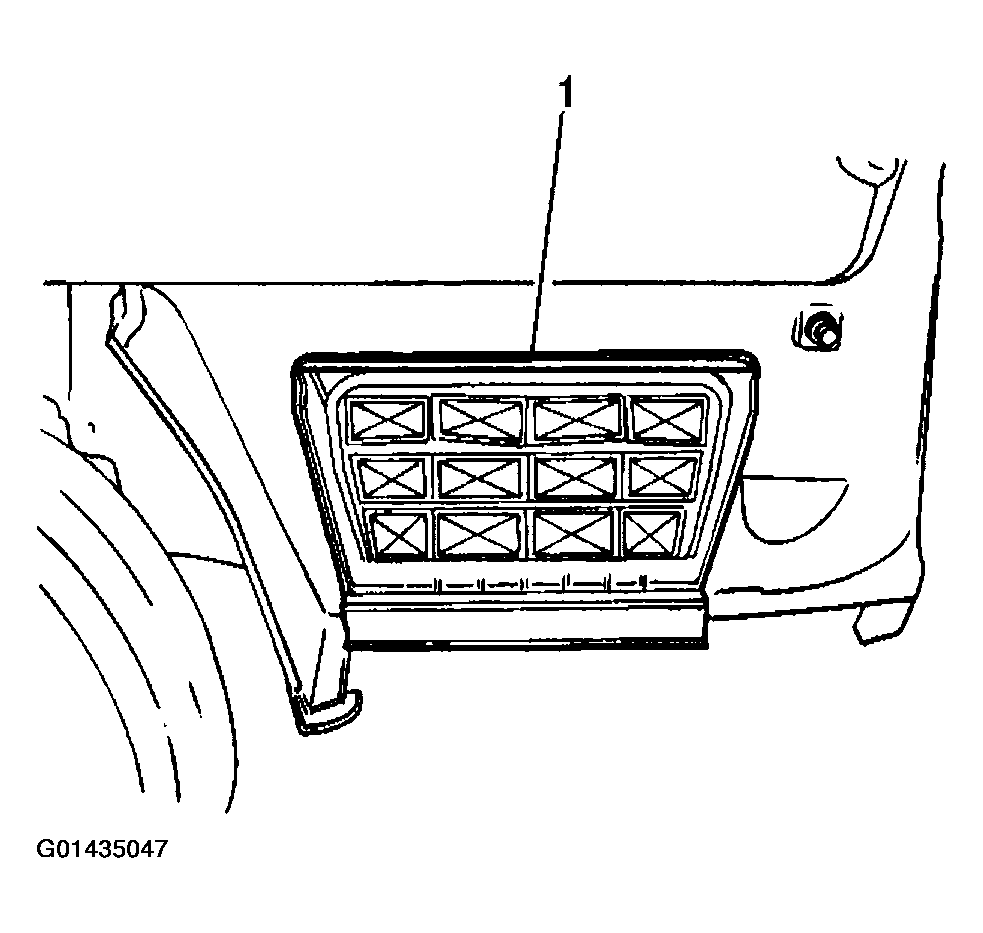

    Fig 1: Installing Quarter Outer Panel Pressure Relief Valve
    G01435047Courtesy of GENERAL MOTORS CORP.
