Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.

Install the lift gate striker (2) to the vehicle.
NOTE: Refer to FASTENER NOTICE .

Fig 1: Installing Rear Lift Gate Striker Bolts
Courtesy of GENERAL MOTORS CORP.
Secure the striker with the 2 bolts (2).
Tighten
Tighten the rear compartment lid lock striker bolts to 11.5 N.m (9 lb ft).
Install the lift gate sill trim plate. Refer to DOOR SILL PLATE REPLACEMENT - LIFT GATE in Interior Trim.

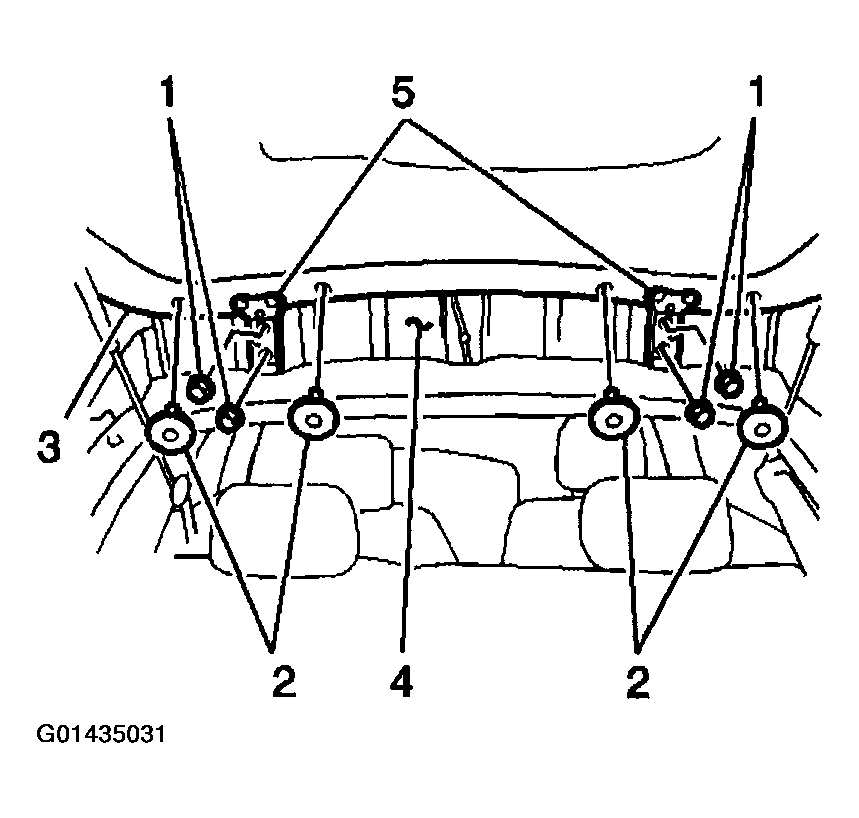

Fig 2: Removing Bolts From Rear Window
Courtesy of GENERAL MOTORS CORP.
