Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the liftgate.
  2. Remove the endgate trim panel. Refer to TRIM PANEL REPLACEMENT - LIFT GATE  .
  3. Disconnect the 2 rods (1) from the lock cylinder.
  4. Remove the 2 nuts (3) from the lock cylinder (2).
  5. Remove the endgate lock cylinder (2) from the liftgate.

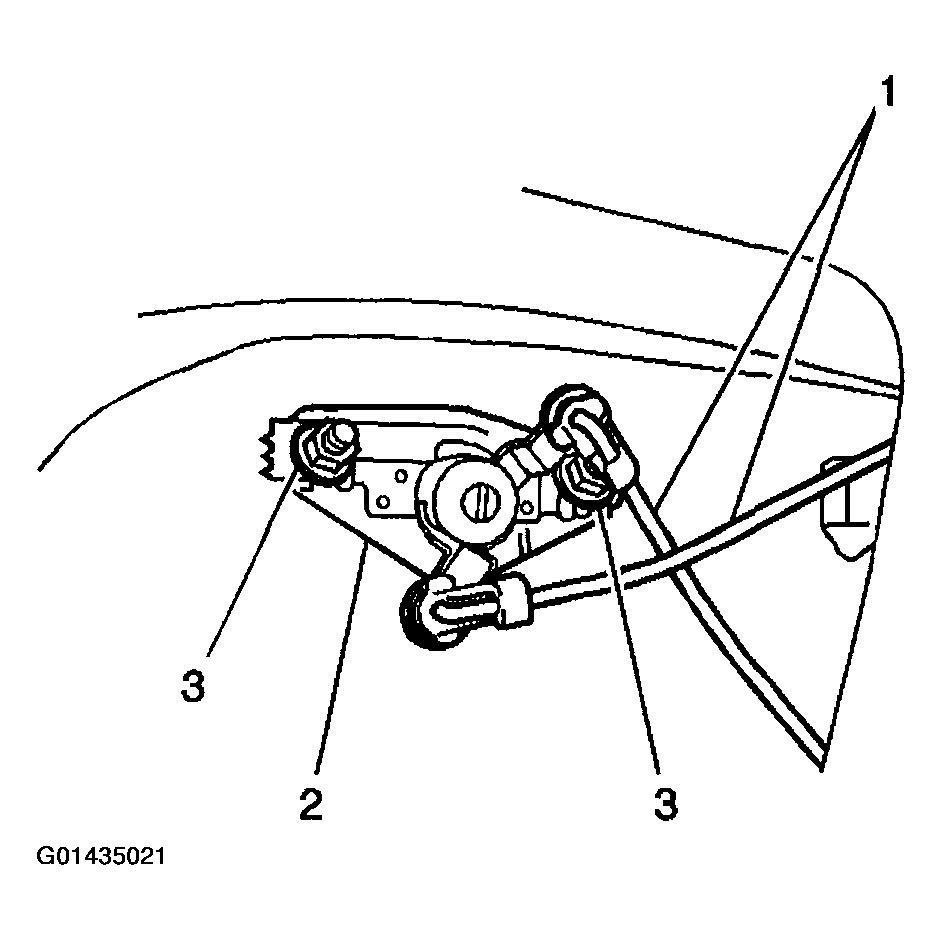

    Fig 1: Removing Endgate Lock Cylinder From Liftgate
    G01435021Courtesy of GENERAL MOTORS CORP.
