Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the endgate lock cylinder (2) to the liftgate.
  2. Install the 2 nuts (3) to the lock cylinder (2).
  3. Connect the 2 rods (1) to the lock cylinder (2).
  4. Install the liftgate trim panel. Refer to TRIM PANEL REPLACEMENT - LIFT GATE  .
  5. Close the liftgate.

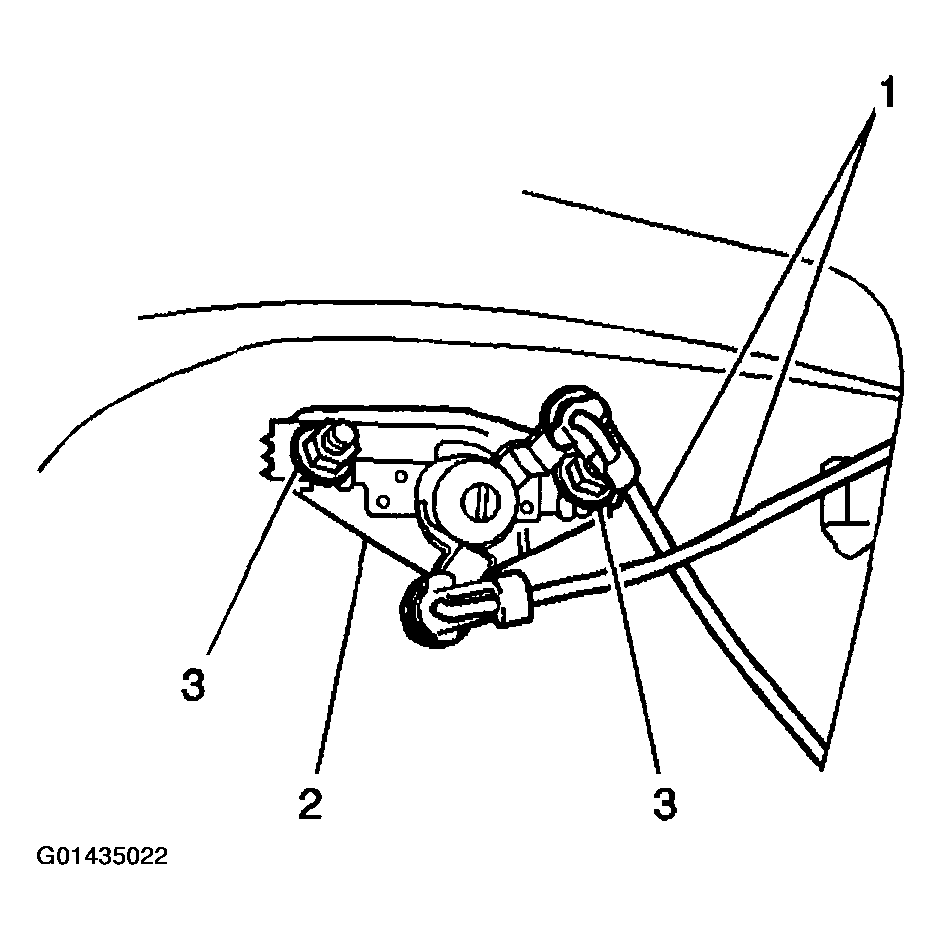

    Fig 1: Installing Endgate Lock Cylinder To Liftgate
    G01435022Courtesy of GENERAL MOTORS CORP.
