Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the lift gate.
  2. Remove the lift gate trim panel. Refer to TRIM PANEL REPLACEMENT - LIFT GATE  .
  3. Disconnect the window latch electrical connector (2) from the lift gate harness (1).
  4. Remove the window latch electrical connector retainer (3) from the lift gate (4).
  5. Close the lift gate.
    Fig 1: Removing Window Latch Electrical Connector Retainer From Lift Gate
    G01435025Courtesy of GENERAL MOTORS CORP.
  6. Open the lift gate window.
  7. Remove the bolts (3) from the rear lift gate window connector (4).
  8. Remove the rear lift gate window connector (4) away from the lift gate (5).
  9. Remove the bolts (2) from the lift gate window latch (1).
  10. Pull lift gate window latch (1) away from lift gate (5) and disconnect the rod from the latch.

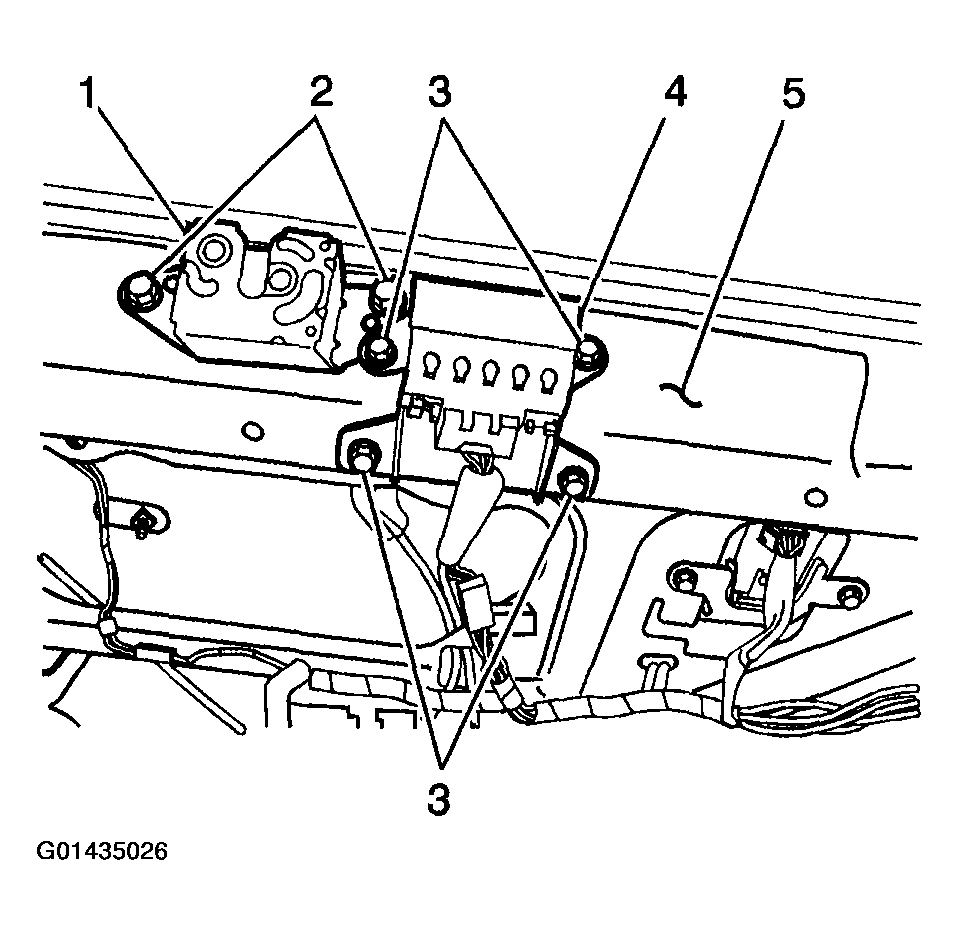

    Fig 2: Removing Bolts From Rear Lift Gate Window Connector
    G01435026Courtesy of GENERAL MOTORS CORP.
