Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.

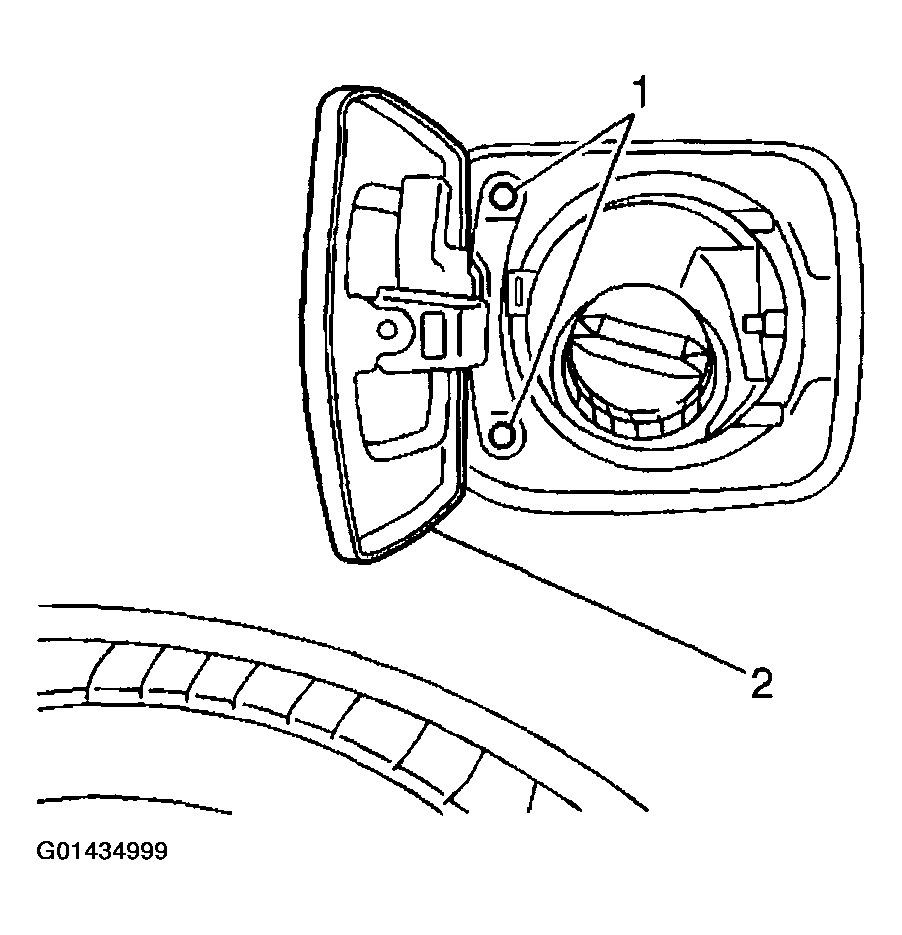

    Fig 1: Removing Fuel Tank Filler Door
    G01434999Courtesy of GENERAL MOTORS CORP.
  1. Open the fuel tank filler door (2).
  2. Disconnect the fuel cap retainer.
  3. Drill out the 2 rivets (1) that retain the fuel tank filler door (2).
  4. Remove the fuel tank filler door (2).
