Hatch Release Inoperative

WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.

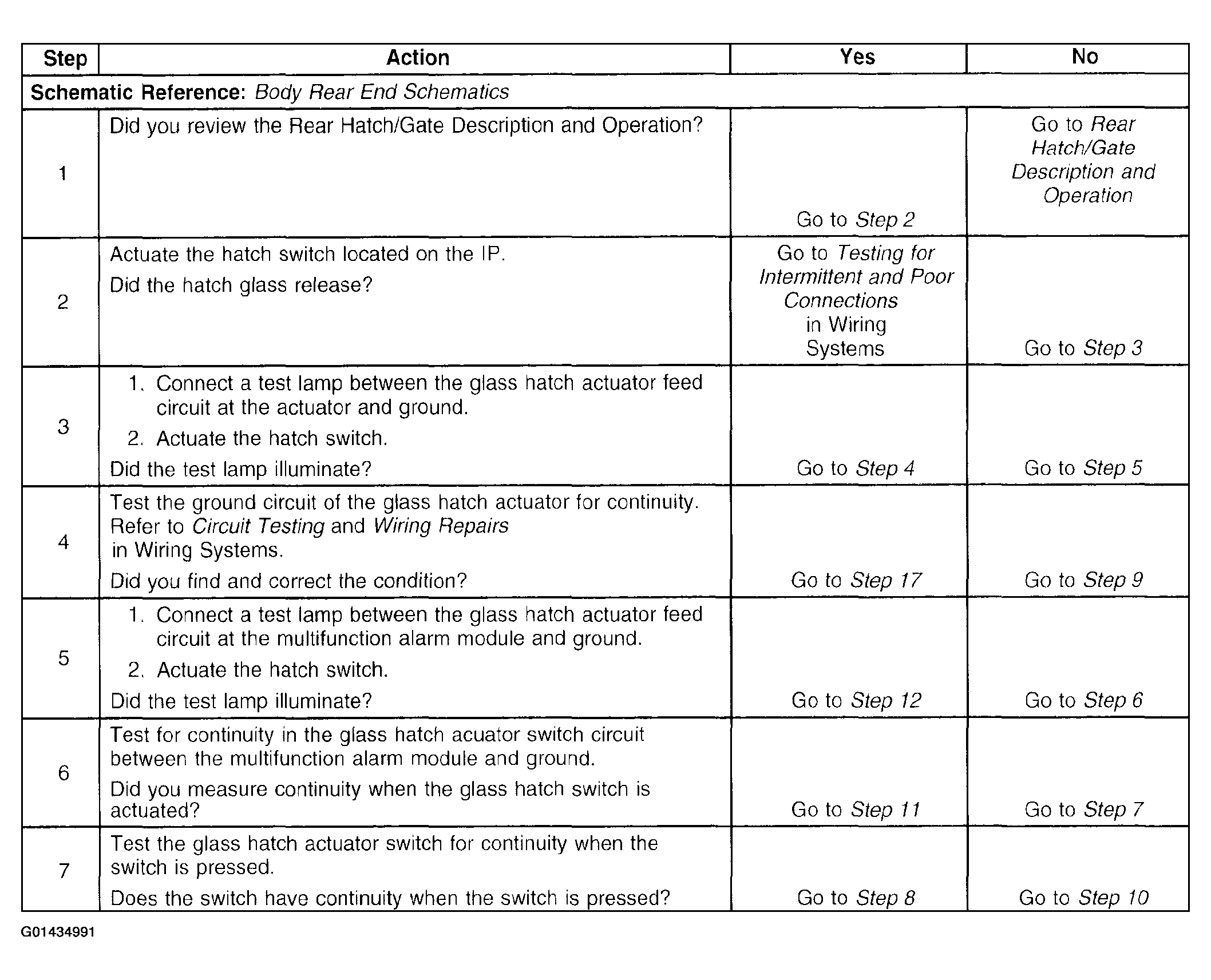

Fig 1: Hatch Release Inoperative Symptom Tests (Step 1 To 7)
G01434991Courtesy of GENERAL MOTORS CORP.

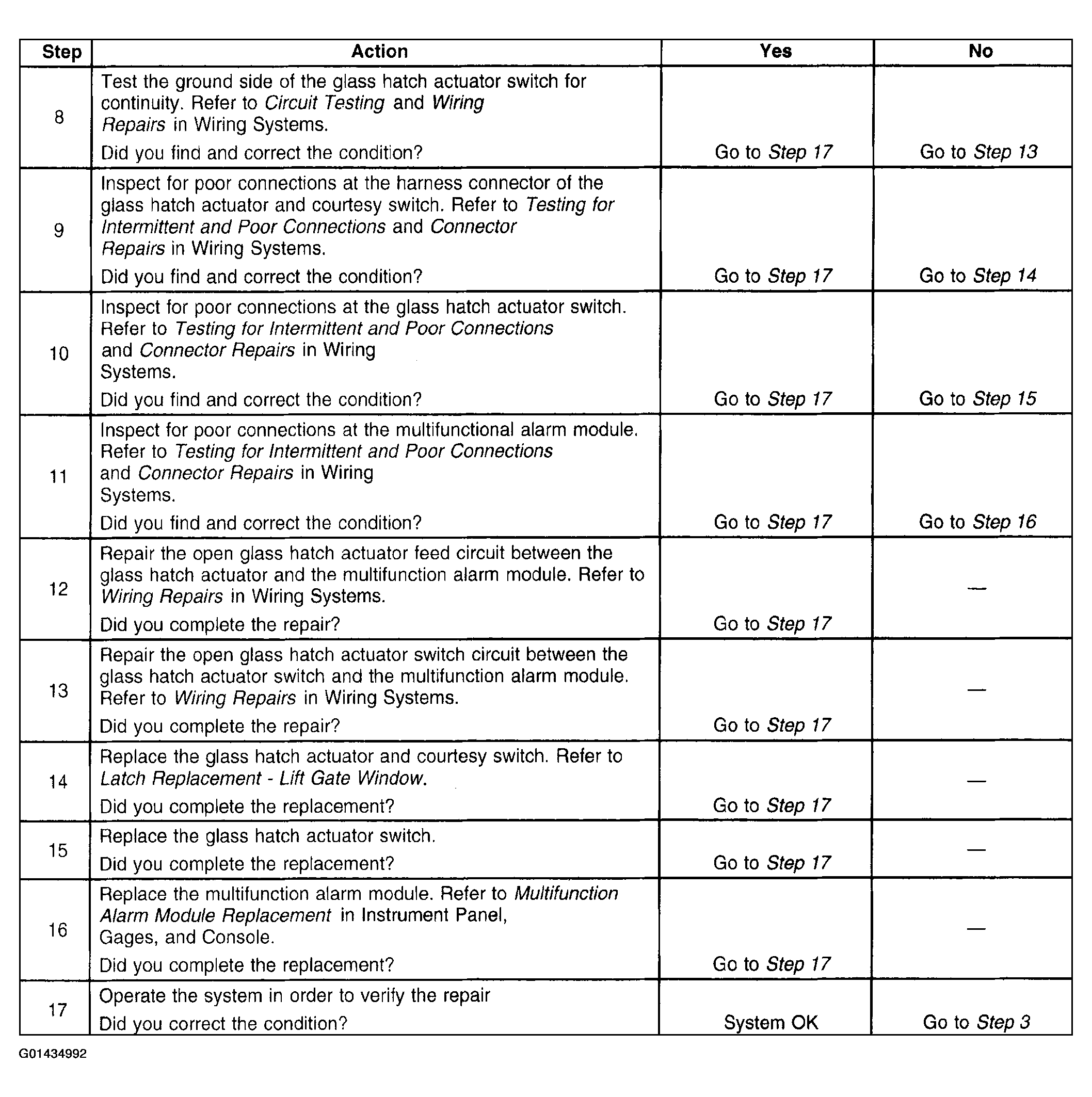

Fig 2: Hatch Release Inoperative Symptom Tests (Step 8 To 17)
G01434992Courtesy of GENERAL MOTORS CORP.
