Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the body hinge pillar trim panel (1) to the vehicle. Secure the trim panel with the plastic retainer (2).
  2. Install the front sill plate trim. Refer to DOOR SILL PLATE REPLACEMENT  .

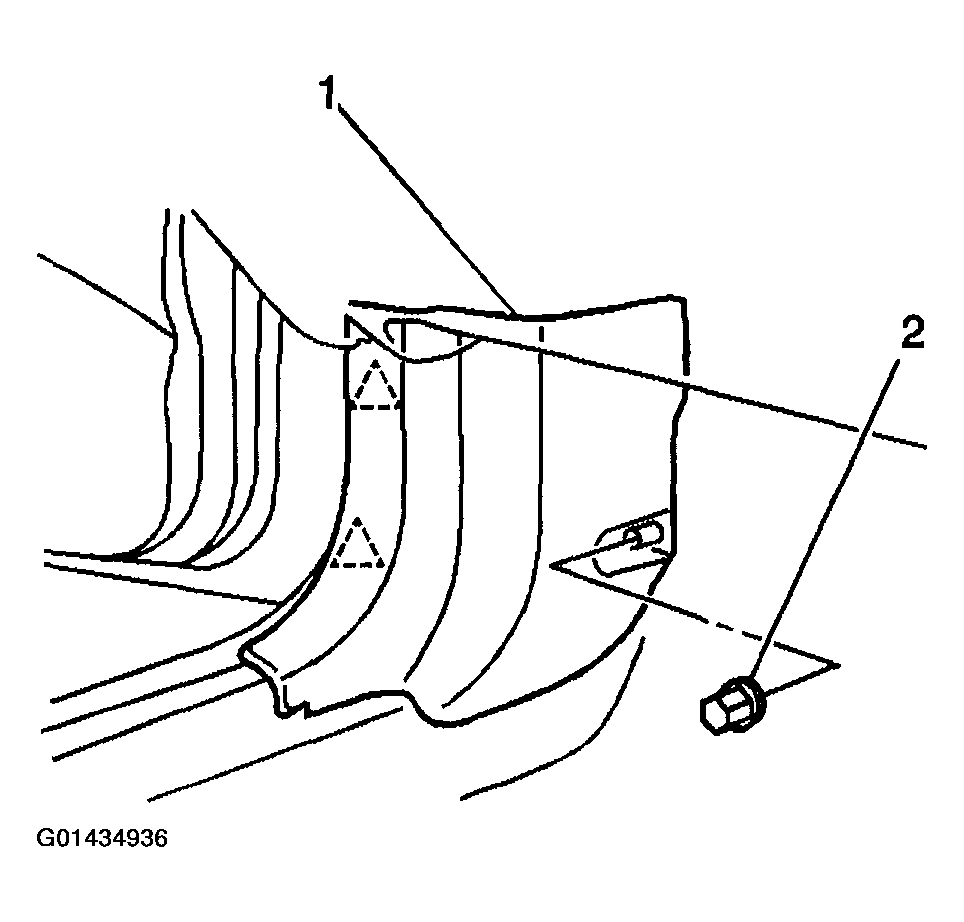

    Fig 1: Securing Trim Panel With Plastic Retainer
    G01434936Courtesy of GENERAL MOTORS CORP.
