Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: Refer to SIR CAUTION .
  1. Disable the SIR System. Refer to DISABLING & ACTIVATING AIR BAG SYSTEM in SIR.
  2. Remove the front side door sill trim plate. Refer to DOOR SILL PLATE REPLACEMENT  .
  3. Remove the rear door sill trim plate. Refer to DOOR SILL PLATE REPLACEMENT  .
  4. Remove the center pillar lower trim panel. Refer to TRIM PANEL REPLACEMENT - LOWER CENTER PILLAR  .
  5. Remove the seat shoulder belt guide adjuster (1) trim cover and the bolt.
  6. Position the belt (2) on the floor.
  7. Remove the center pillar upper trim panel (2) by gently pulling loose.

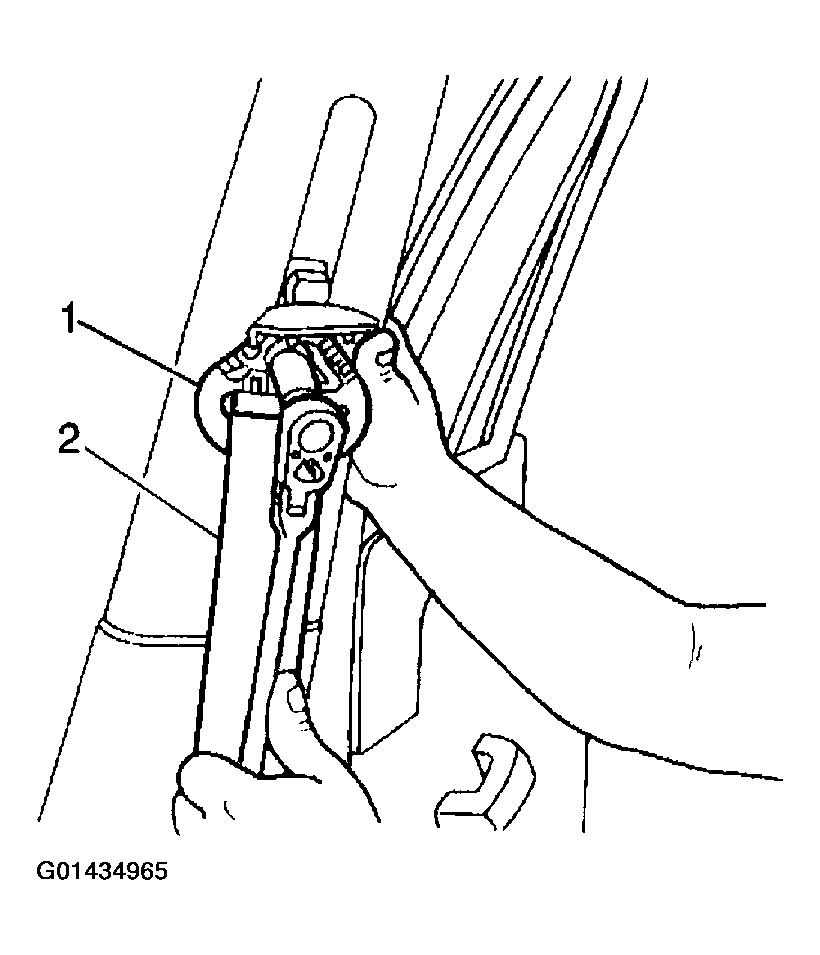

    Fig 1: Removing Seat Shoulder Belt Guide Adjuster Trim Cover And Bolt
    G01434965Courtesy of GENERAL MOTORS CORP.
    Fig 2: Removing Center Pillar Upper Trim Panel
    G01434966Courtesy of GENERAL MOTORS CORP.
