Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the center pillar upper trim panel (2), by pushing in until tab (1) fastens.
    Fig 1: Installing Center Pillar Upper Trim Panel
    G01434967Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to FASTENER NOTICE .
  2. Install the seat shoulder belt guide adjuster (1) bolt.

    Tighten

    Tighten the adjuster bolt to 42 N.m (31 lb ft).

  3. Install the seat shoulder belt guide trim cover.
  4. Install the center pillar lower trim panel. Refer to TRIM PANEL REPLACEMENT - LOWER CENTER PILLAR  .

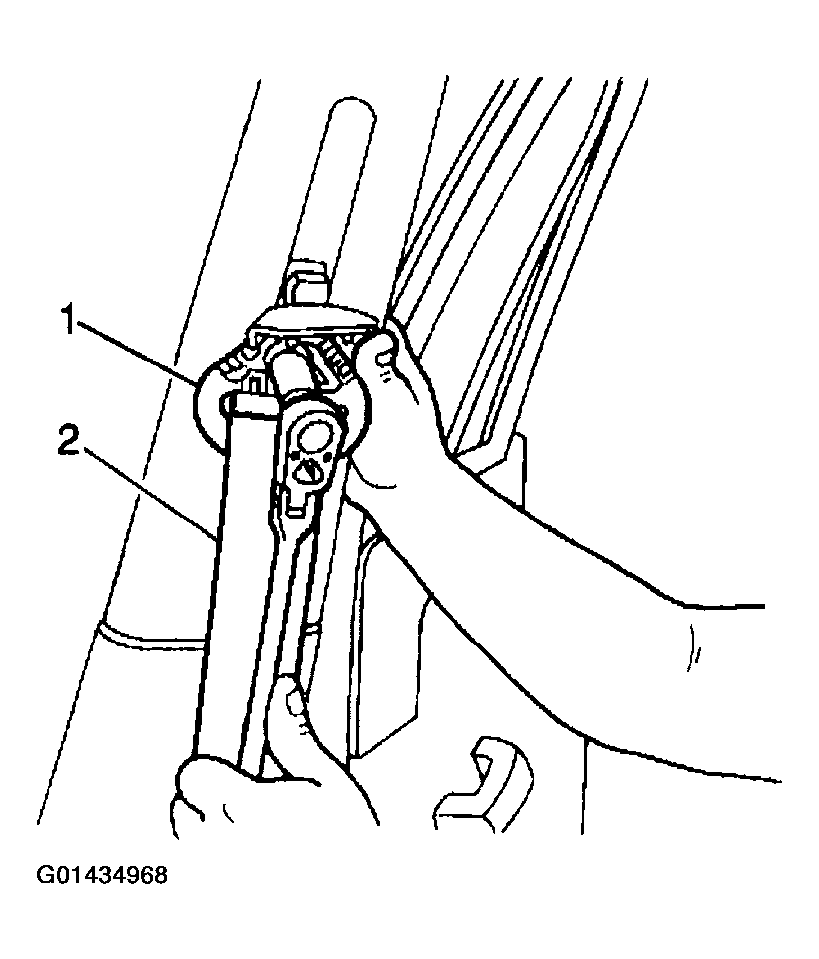

    Fig 2: Installing Seat Shoulder Belt Guide Adjuster Bolt
    G01434968Courtesy of GENERAL MOTORS CORP.
  5. Install the front side door sill trim plate (1) to the vehicle. Refer to DOOR SILL PLATE REPLACEMENT  .
  6. Install the rear side door sill trim plate. Refer to DOOR SILL PLATE REPLACEMENT  .
  7. Enable the SIR System. Refer to DISABLING & ACTIVATING AIR BAG SYSTEM in SIR.

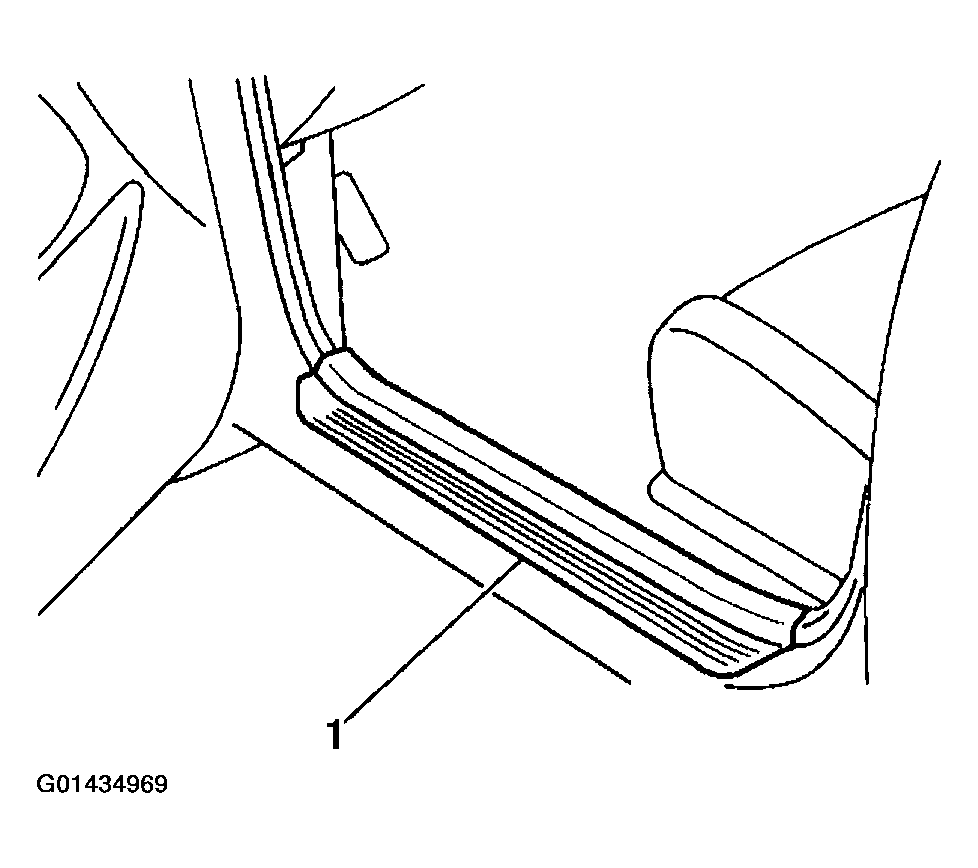

    Fig 3: Installing Front Side Door Sill Trim Plate To Vehicle
    G01434969Courtesy of GENERAL MOTORS CORP.
