Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the seat belt shoulder anchor cover (1) using a flat bladed tool.
  2. Remove the shoulder anchor bolt (8).
  3. Remove the seat belt shoulder anchor (7) from the vehicle.
    Fig 1: Removing Seat Belt Shoulder Anchor Bolt
    G01434973Courtesy of GENERAL MOTORS CORP.
  4. Remove the lower quarter trim panel. Refer to TRIM PANEL REPLACEMENT - REAR QUARTER LOWER  .
  5. Disengage the 7 plastic retainers (1) which secure the quarter upper trim panel (2).
  6. Remove the quarter upper trim panel (2) from the vehicle.

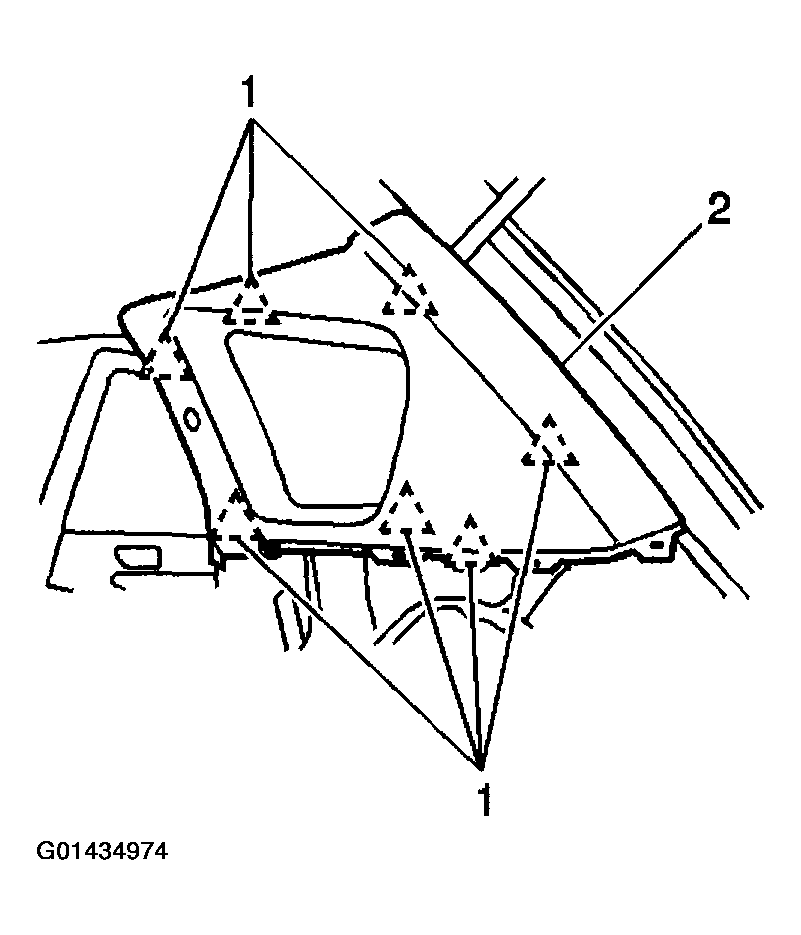

    Fig 2: Disengaging Plastic Retainers Securing Quarter Upper Trim Panel
    G01434974Courtesy of GENERAL MOTORS CORP.
