Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the lift gate sill trim panel. Refer to DOOR SILL PLATE REPLACEMENT - LIFT GATE  .
  2. Remove the rear body side lower garnish molding. Refer to GARNISH MOLDING REPLACEMENT - BODY SIDE LOWER REAR  on .
  3. Remove the rear tool storage compartment tray. Refer to TOOL STORAGE COMPARTMENT REPLACEMENT  .
  4. Remove the rear storage compartment. Refer to STORAGE COMPARTMENT REPLACEMENT - REAR   .
  5. Remove the 4 bolts (3) and the 4 tie down hooks (1) from the trim panel (4).
  6. Disengage the 4 plastic retainers (2) which secure the quarter lower trim panel (4).
  7. Remove the quarter lower trim panel (4) from the vehicle.

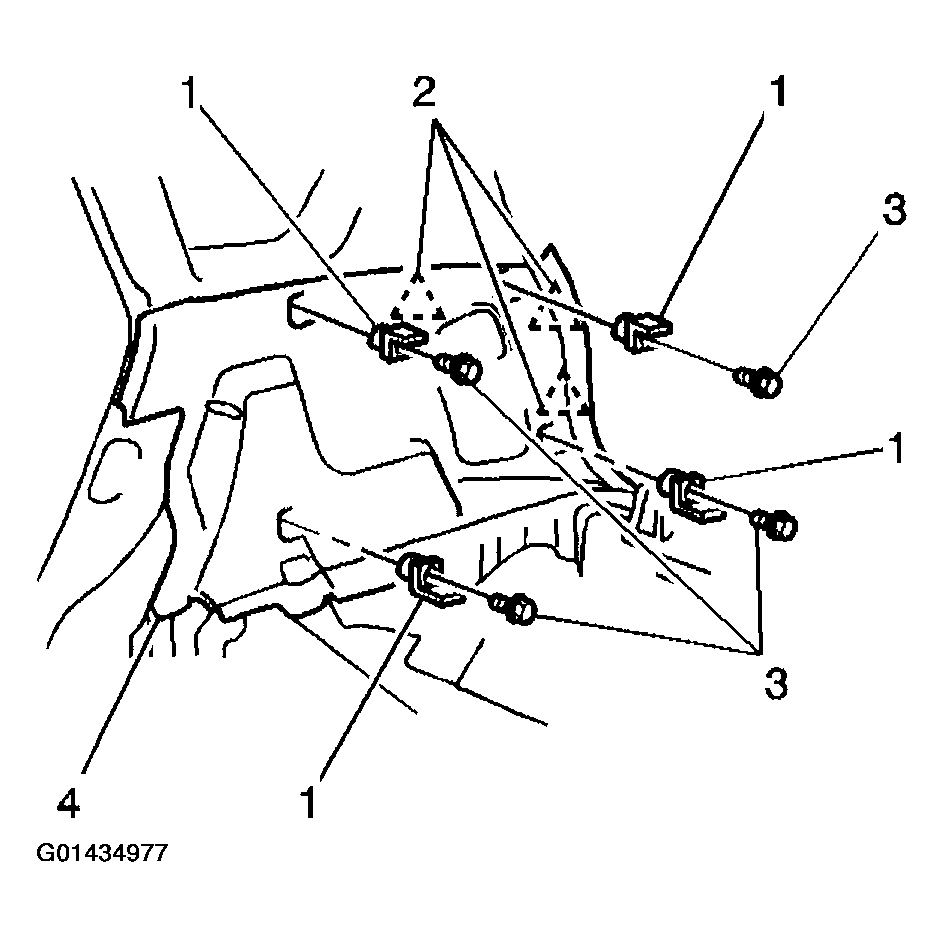

    Fig 1: Disengaging Plastic Retainers Securing Quarter Lower Trim Panel
    G01434977Courtesy of GENERAL MOTORS CORP.
