Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the quarter lower trim panel (4) to the vehicle. Ensure that the plastic retainers (2) are fully engaged.
  2. Install the tie down hooks (1) and bolts (3) to the trim panel.
  3. Install the rear storage compartment. Refer to STORAGE COMPARTMENT REPLACEMENT - REAR  .
  4. Install the rear tool storage compartment tray. Refer to TOOL STORAGE COMPARTMENT REPLACEMENT  .
  5. Install the rear body side lower garnish molding. Refer to GARNISH MOLDING REPLACEMENT - BODY SIDE LOWER REAR  .
  6. Install the lift gate sill trim panel. Refer to DOOR SILL PLATE REPLACEMENT - LIFT GATE  .

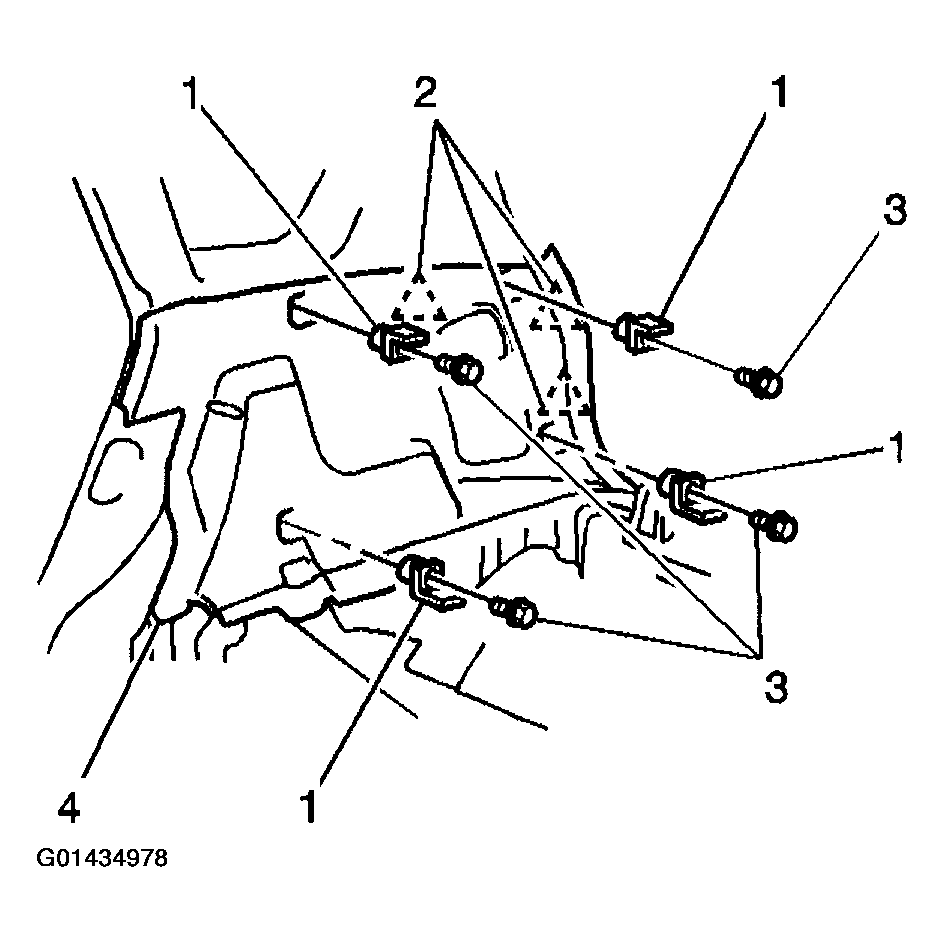

    Fig 1: Installing Quarter Lower Trim Panel Plastic Retainers
    G01434978Courtesy of GENERAL MOTORS CORP.
