Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.
  1. Unlock the rear compartment front side panel (8), by turning the knob (9).
  2. Lift up and remove the rear compartment front side panel (8) from the vehicle.

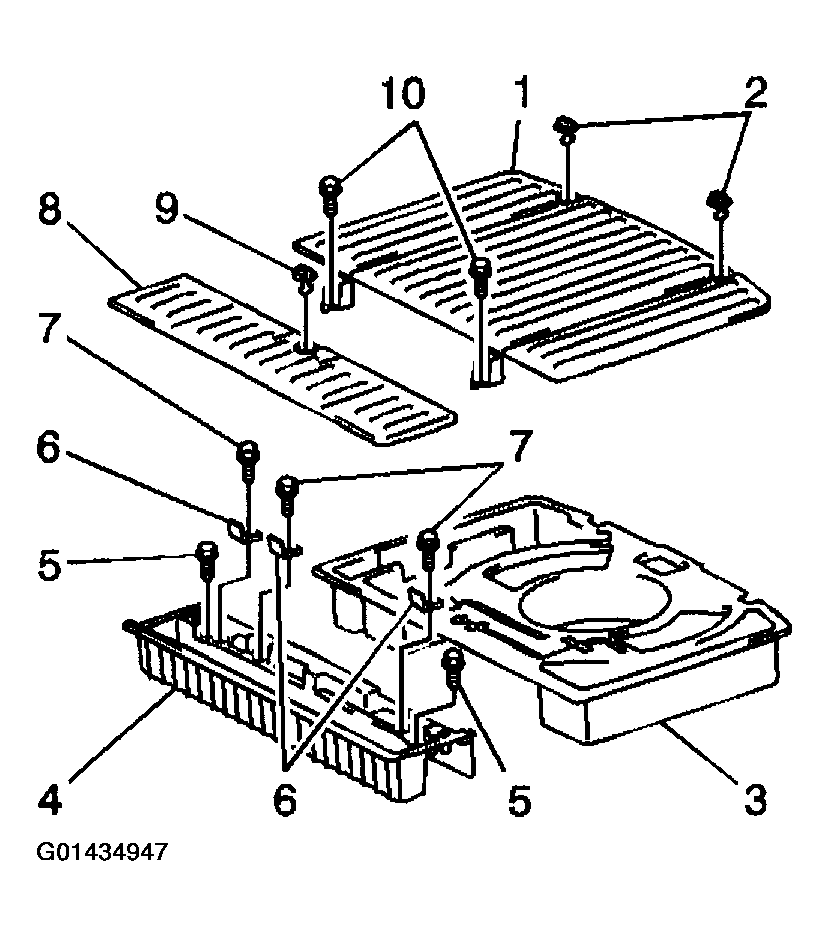

    Fig 1: Lifting Up And Removing Rear Compartment Front Side Panel From Vehicle
    G01434947Courtesy of GENERAL MOTORS CORP.
