Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the rear front compartment panel (8) to the vehicle.
  2. Lock the compartment panel (8), by turning the knob (9).

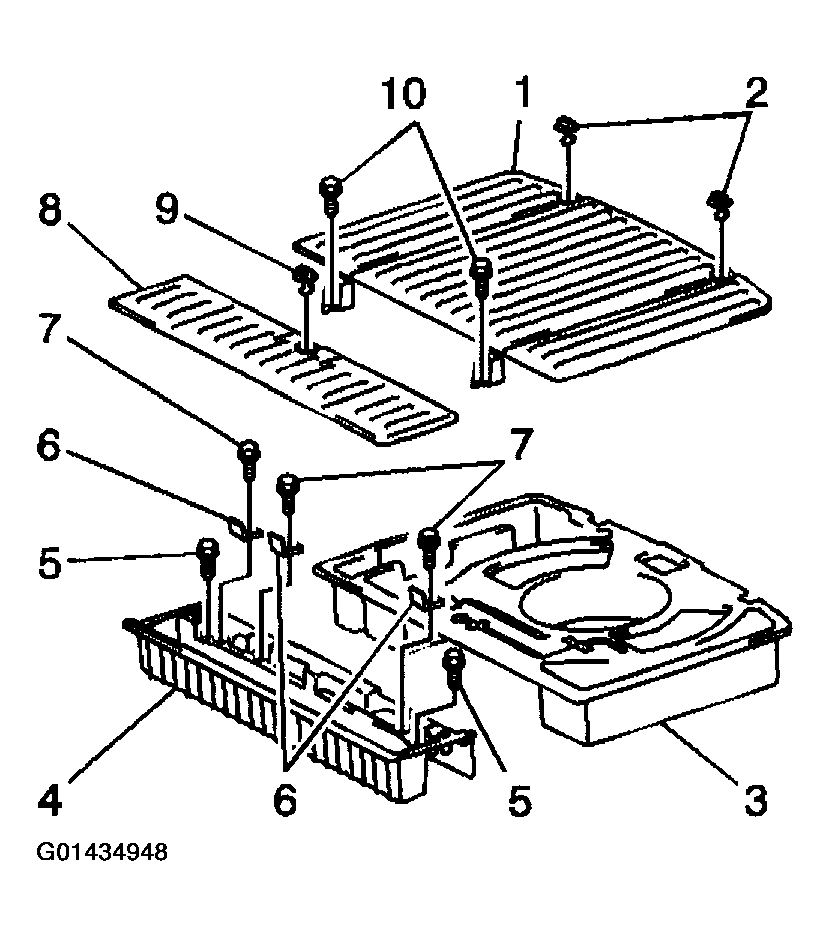

    Fig 1: Installing Rear Front Compartment Panel To Vehicle
    G01434948Courtesy of GENERAL MOTORS CORP.
