Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the rear accessory panel (1).
  2. Remove the spare tire retainer, by turning counter clockwise.
  3. Remove the rear storage compartment (3).

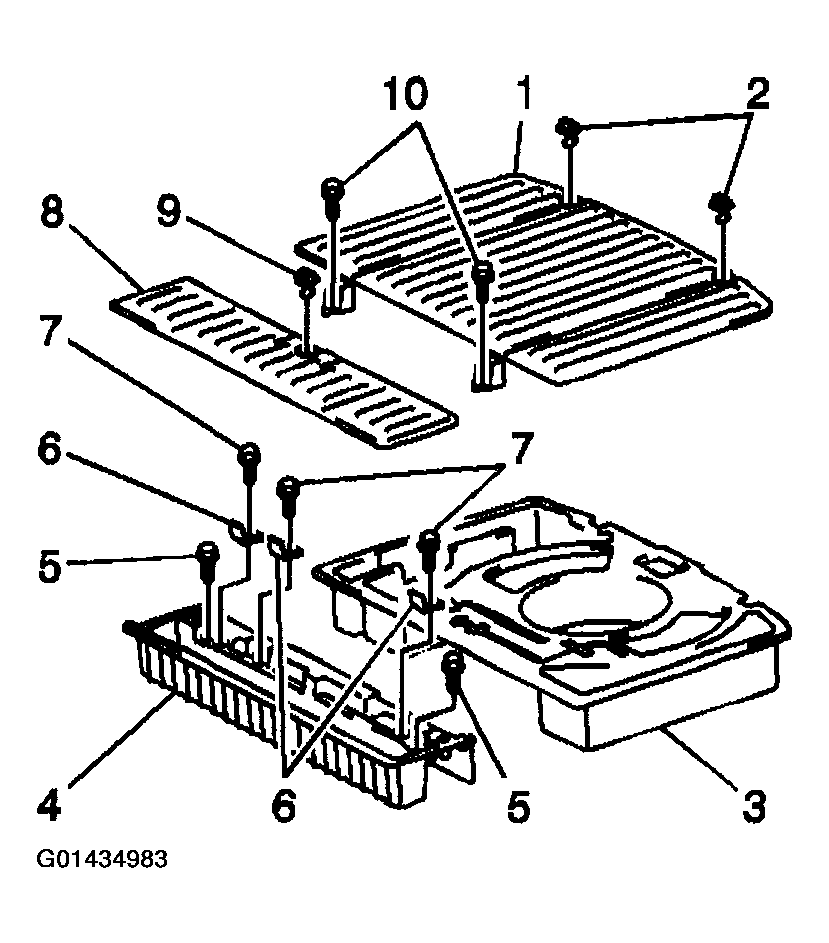

    Fig 1: Removing Rear Storage Compartment
    G01434983Courtesy of GENERAL MOTORS CORP.
