Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the rear storage compartment (1) to the vehicle.
  2. Install the spare tire retainer to the rear storage compartment (3), by turning clockwise.
  3. Close the rear accessory panel (1).

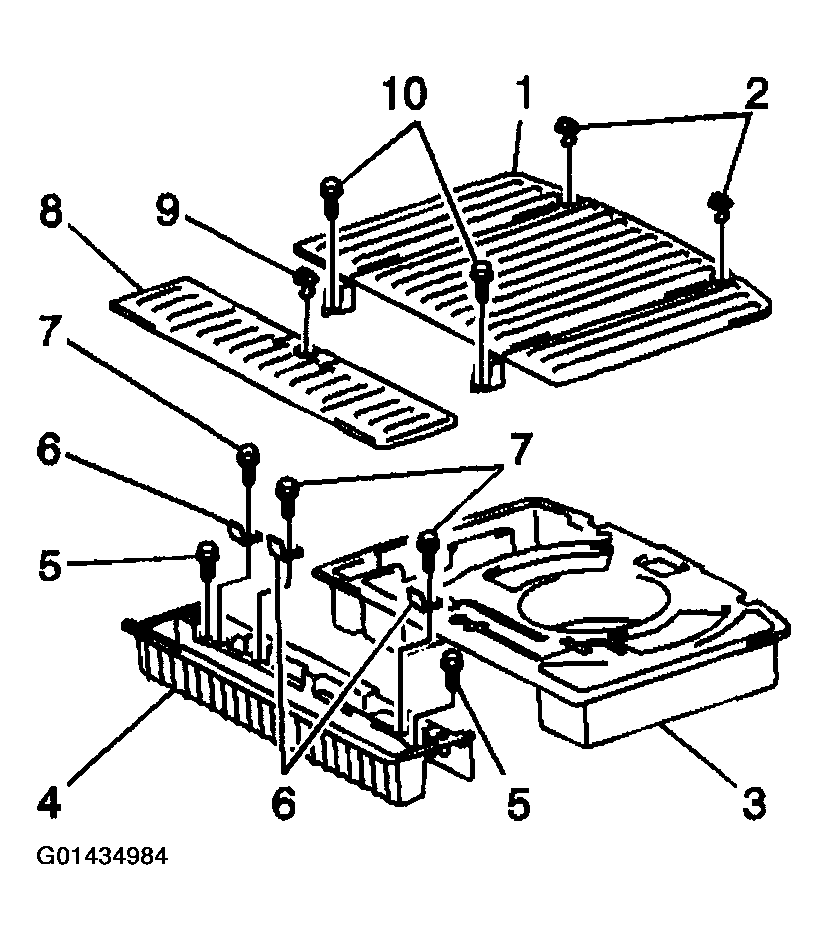

    Fig 1: Installing Rear Storage Compartment To Vehicle
    G01434984Courtesy of GENERAL MOTORS CORP.
