Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the rear body side lower garnish molding (1) to the vehicle. Ensure that the plastic retainers are fully seated.
  2. Install the rear seat hinge (3) to the rear body side lower garnish molding (1).
    NOTE: Refer to FASTENER NOTICE .
  3. Install the bolt (2) to the rear seat hinge (3).

    Tighten

    Tighten the rear seat hinge bolt to 18 N.m (13 lb ft).

  4. Install the rear seat assembly. Refer to SEAT REPLACEMENT - REAR in Seats.

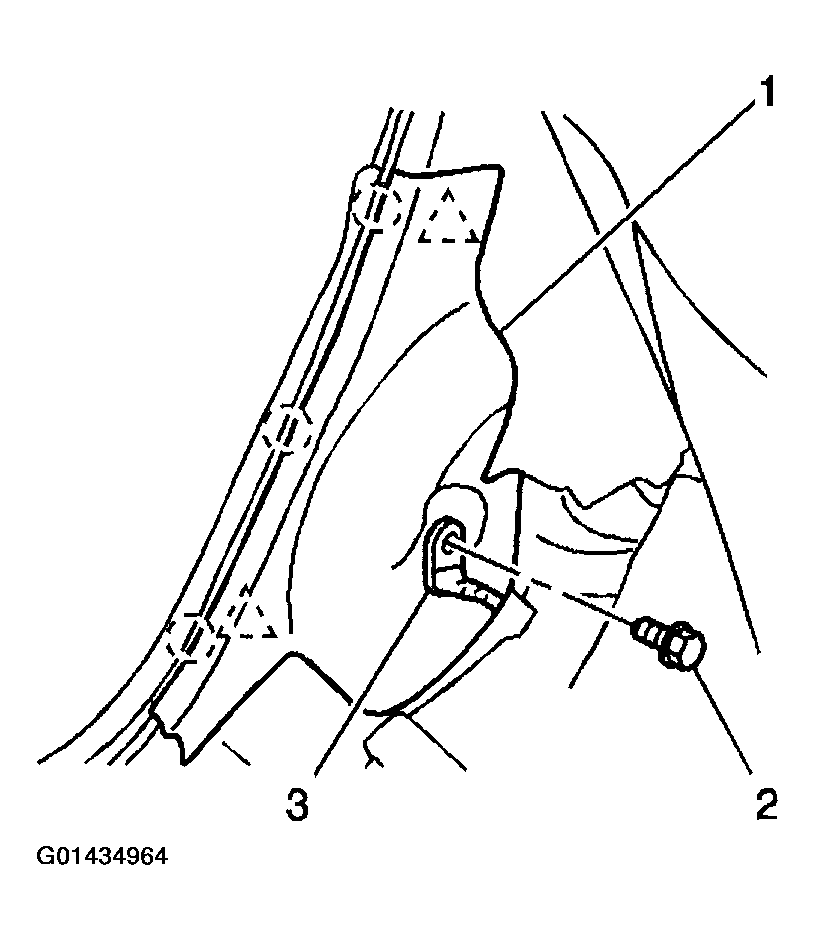

    Fig 1: Installing Rear Seat Hinge Bolt
    G01434964Courtesy of GENERAL MOTORS CORP.
