Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.
  1. Unfasten the 2 plastic retainers (4) which secure the foot rest to the floor panel.
  2. Remove the foot rest (5) from the vehicle.

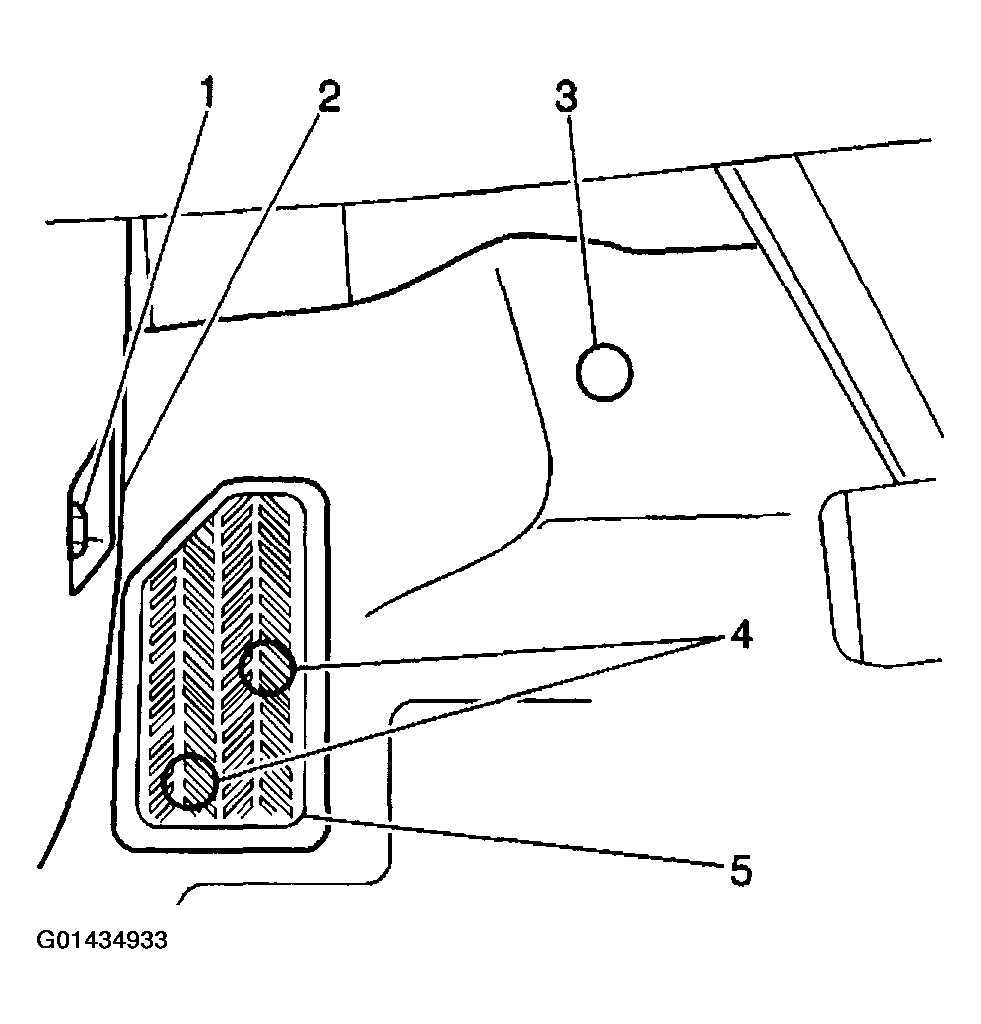

    Fig 1: Removing Foot Rest From Vehicle
    G01434933Courtesy of GENERAL MOTORS CORP.
