Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the lift gate.
  2. Remove the 2 clips.
  3. Using a flat bladed tool, remove the sill plate.

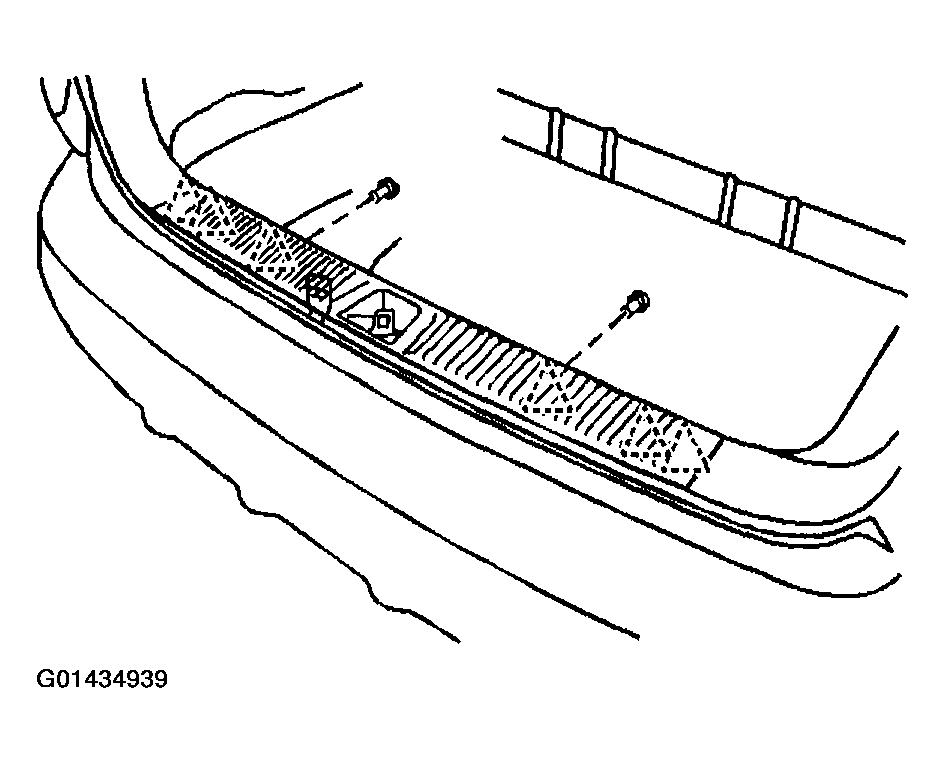

    Fig 1: Removing Sill Plate Clips
    G01434939Courtesy of GENERAL MOTORS CORP.
