Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.
  1. Align and install the door sill plate by applying pressure to the tabs.
  2. Install the 2 clips.
  3. Close the lift gate.

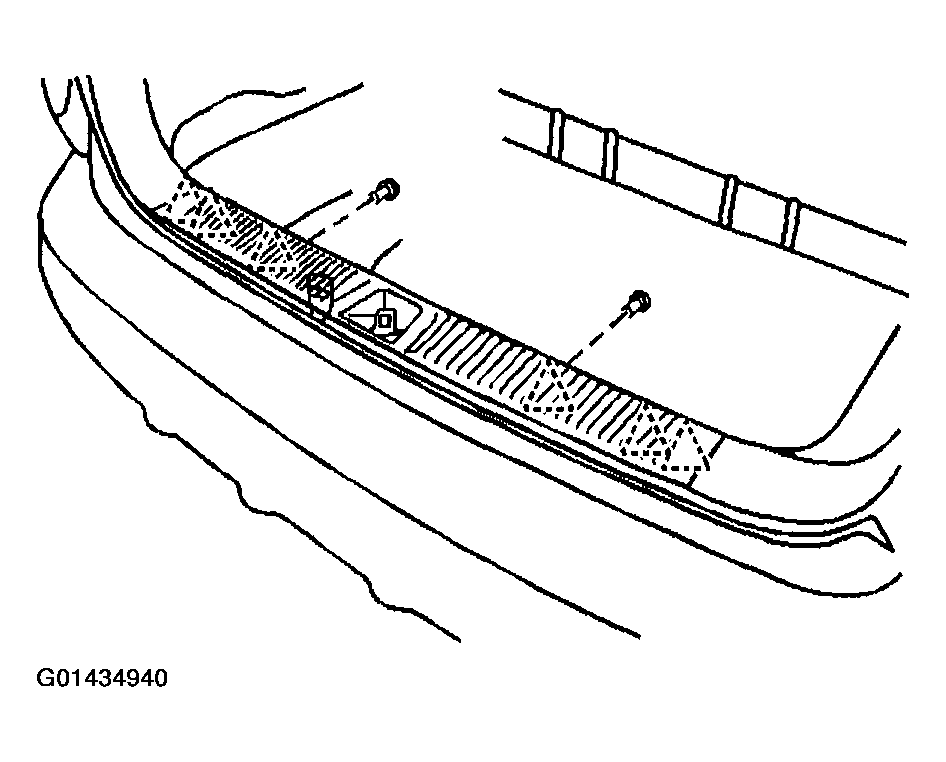

    Fig 1: Installing Sill Plate Clips
    G01434940Courtesy of GENERAL MOTORS CORP.
