Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove tool storage access panel (8), by turning the knob (9).
  2. Unlock the accessory panel, by turning the knobs (2).
  3. Remove the accessory panel bolts (10).
  4. Remove the rear accessory panel (1).

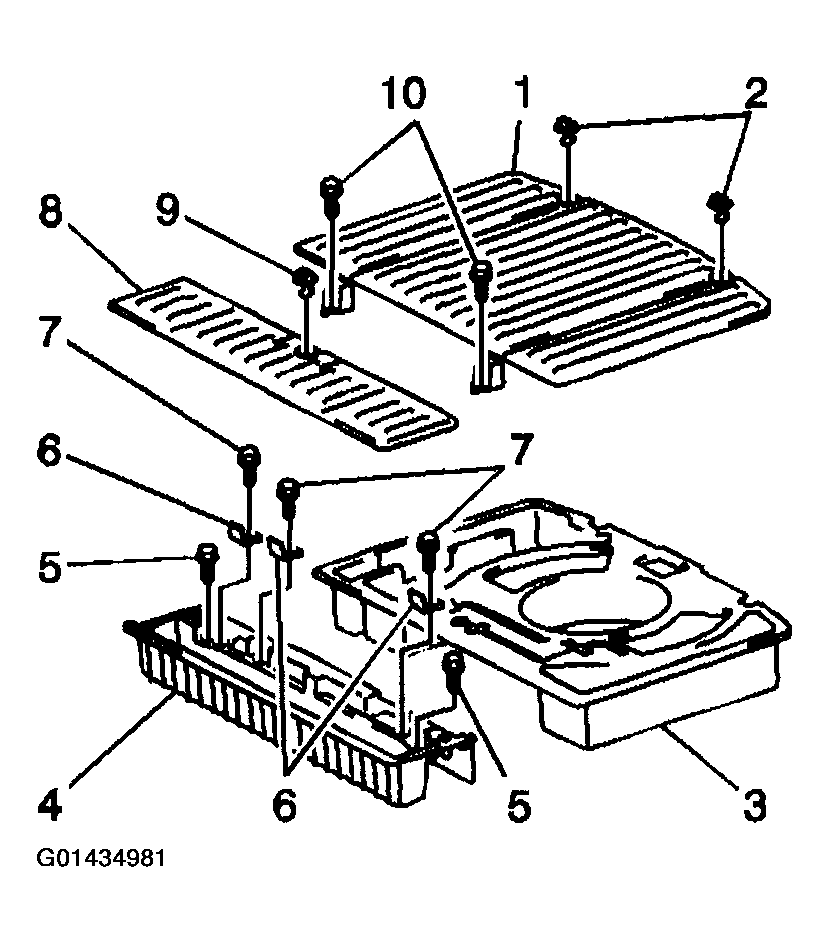

    Fig 1: Removing Rear Accessory Panel
    G01434981Courtesy of GENERAL MOTORS CORP.
