Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the rear accessory panel (1) to the vehicle.
  2. Install the bolts (10) to the accessory panel (1).
  3. Lock the rear accessory panel, by turning the knobs (2).
  4. Install the tool storage access panel (8).

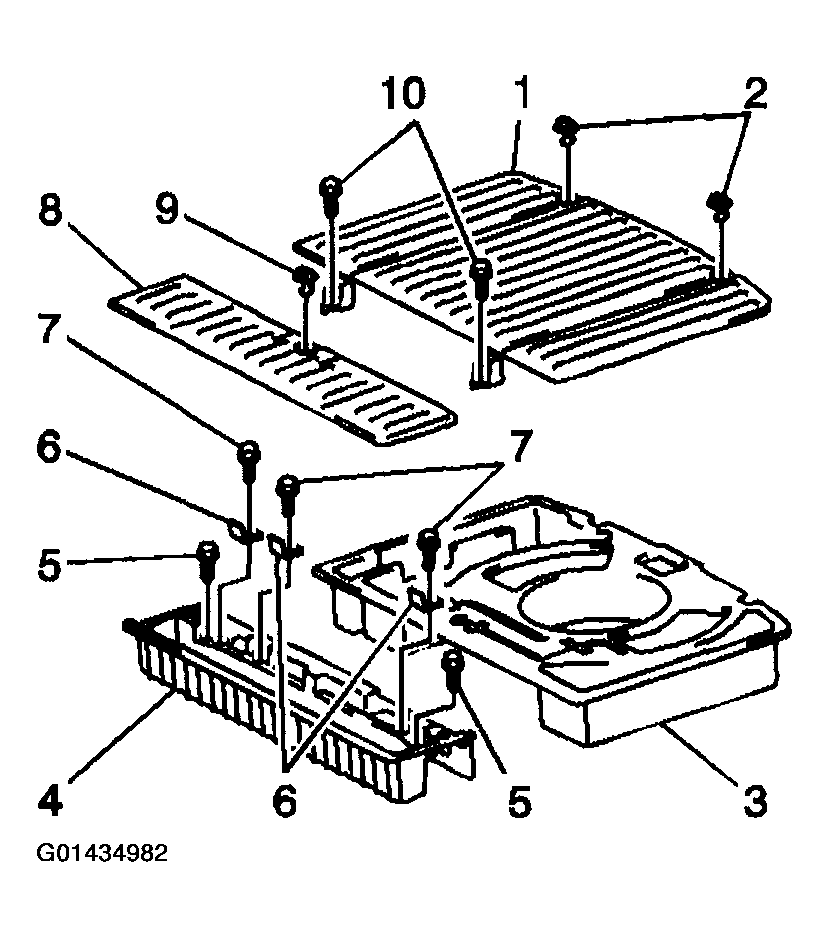

    Fig 1: Installing Rear Accessory Panel To Vehicle
    G01434982Courtesy of GENERAL MOTORS CORP.
