Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.
  1. Fold down the right rear seat back cushion.
  2. Remove the 2 access panels (3).
  3. Remove the 4 screws (2) from the rear seat back trim panel (4).
  4. Unclip and remove the right rear seat back trim panel (4).

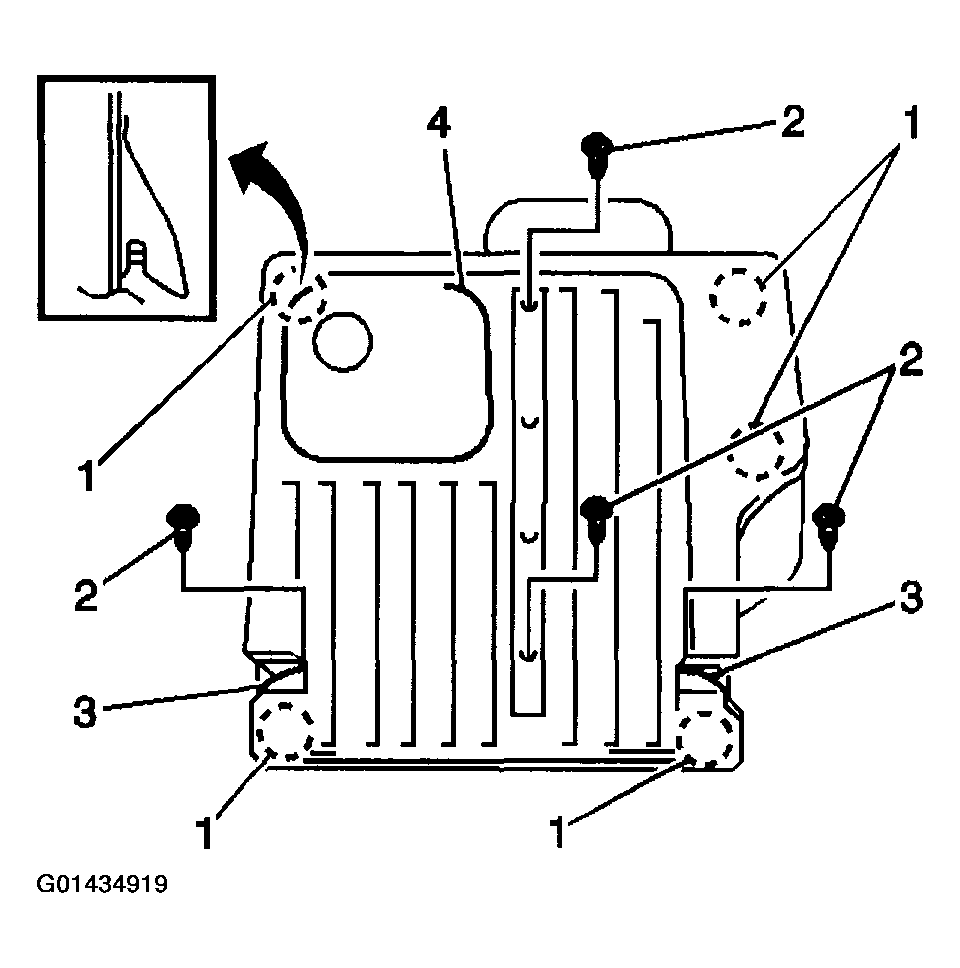

    Fig 1: Removing Right Rear Seat Back Trim Panel & Screws
    G01434919Courtesy of GENERAL MOTORS CORP.
