Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the right rear seat back trim panel (4) to the right rear seat back.
  2. Secure the trim panel 4 with the 4 screws (2).
  3. Install the access panels (3) to the trim panel (4).
  4. Return the right rear seat to the up right position.

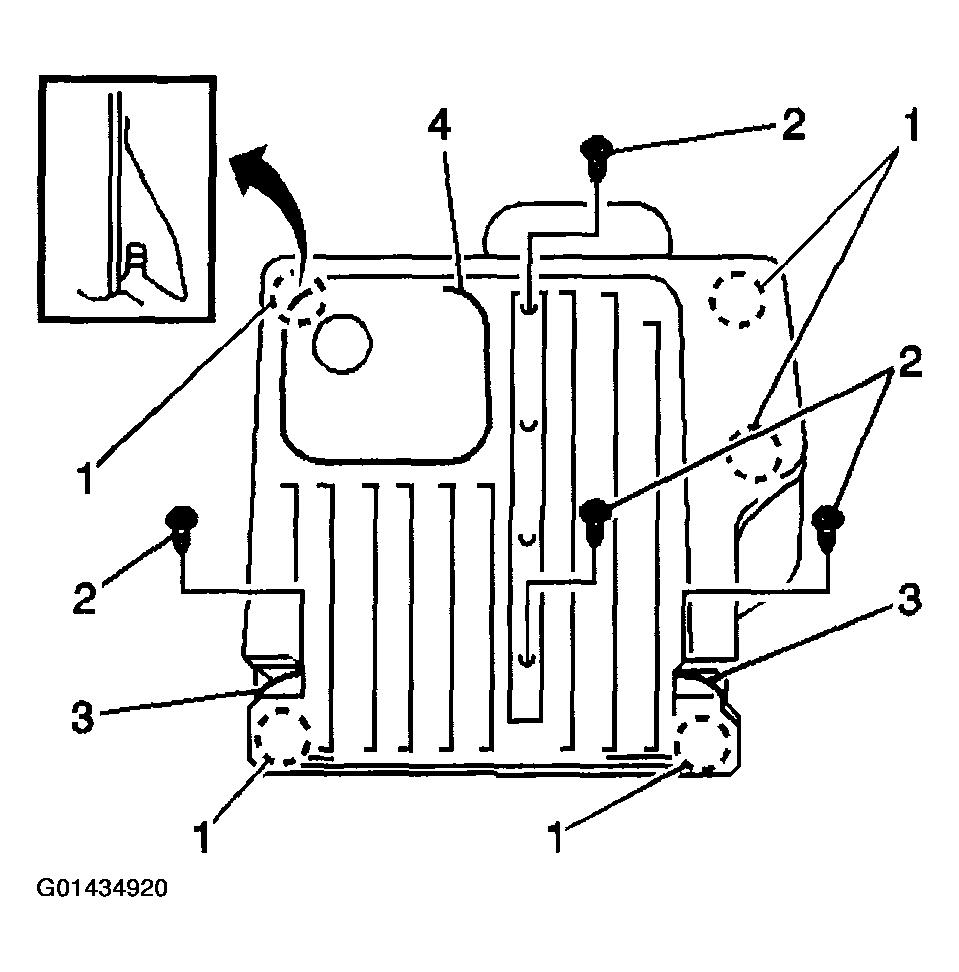

    Fig 1: Installing Right Rear Seat Back Trim Panel & Screws
    G01434920Courtesy of GENERAL MOTORS CORP.
