Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.
  1. Fold down the left rear seat back cushion.
  2. Remove the 2 access panels (3).
  3. Remove the 4 screws (2) from the rear seat back trim panel (4).
  4. Unclip and remove the left rear seat back trim panel (4).

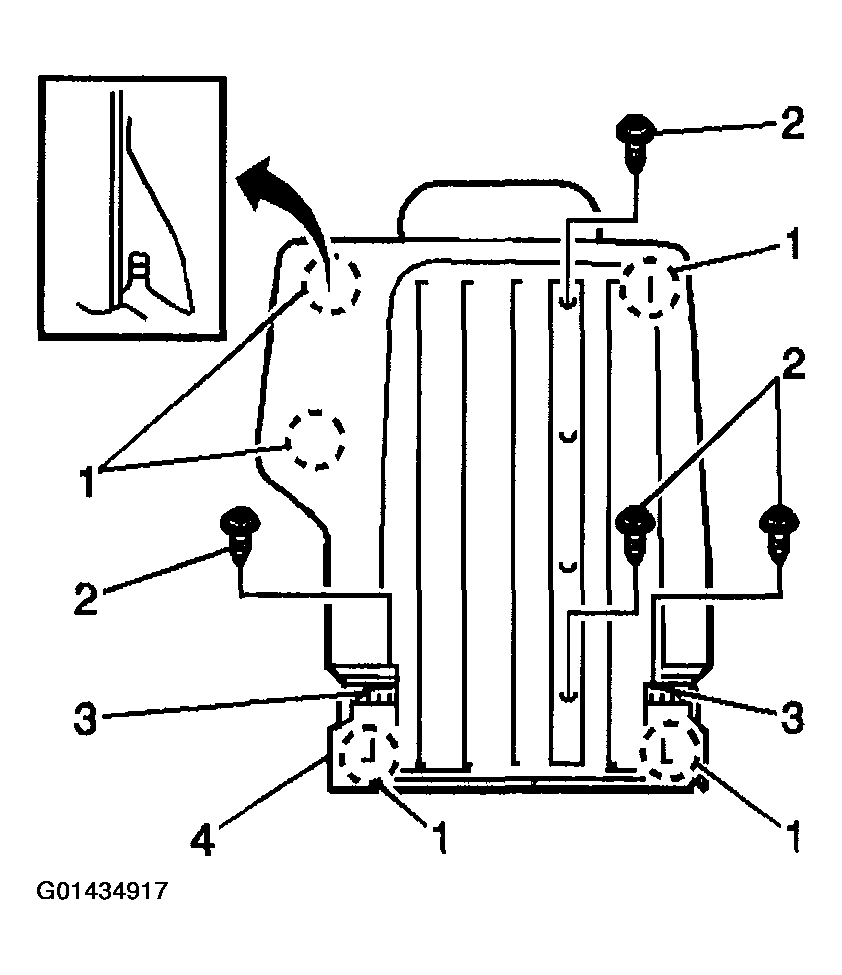

    Fig 1: Removing Left Rear Seat Back Trim Panel & Screws
    G01434917Courtesy of GENERAL MOTORS CORP.
