Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.
  1. Fold down seat back.
  2. Remove the plastic hinge covers (1).
  3. Remove seat back hinge bolts (2).
  4. Remove center seat belt retractor, if necessary. Refer to SEAT BELT RETRACTOR REPLACEMENT - CENTER REAR in Seat Belts.
  5. Remove the lower bolts (3) from the seat.
  6. Remove the rear seat (4) from the vehicle.

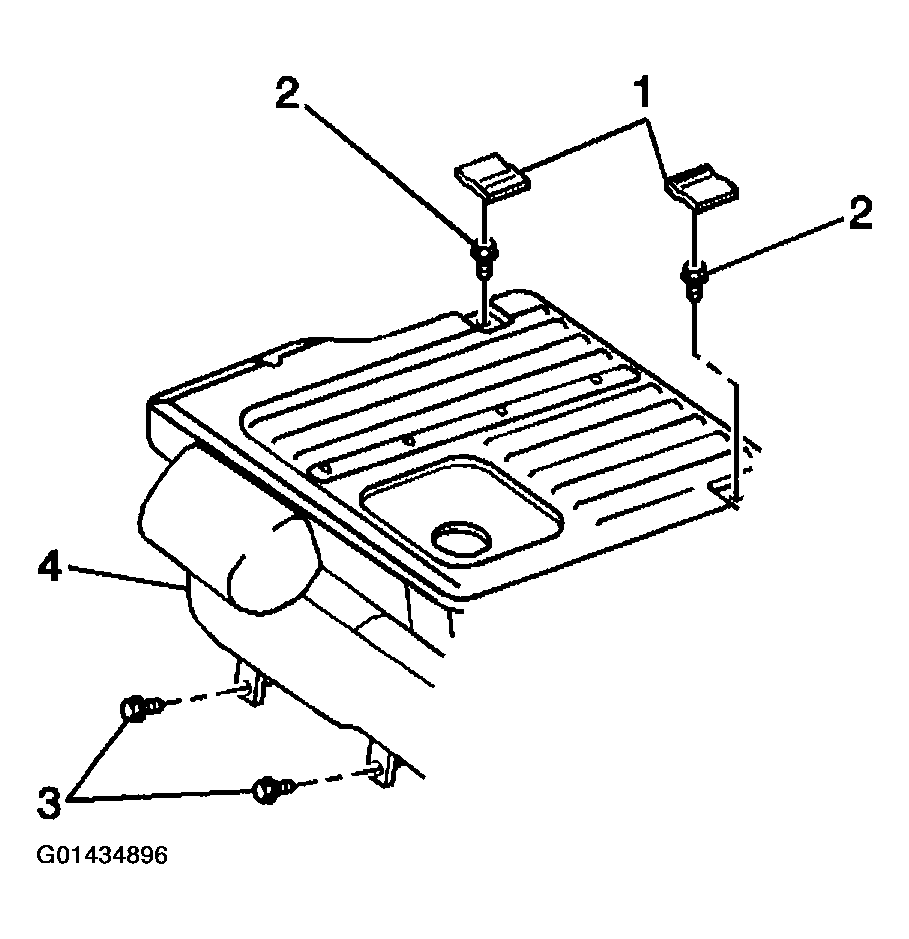

    Fig 1: Removing Plastic Hinge Covers & Seat Back Hinge Bolts
    G01434896Courtesy of GENERAL MOTORS CORP.
