Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: Refer to SIR CAUTION .
  1. Disable the SIR system, if equipped with side impact inflatable restraint modules. Refer to ZONE 7 and to ZONE 9 .
  2. Disconnect the side impact inflatable restraint module electrical connector (1), if equipped. The electrical connector is located beneath the seat cushion.
    Fig 1: Disconnecting Side Impact Inflatable Restraint Module Electrical Connector
    G01434852Courtesy of GENERAL MOTORS CORP.
  3. Remove the following components from the vehicle:
    • The seat bolt finish covers
    • The 4 bolts
    • The front seat assembly

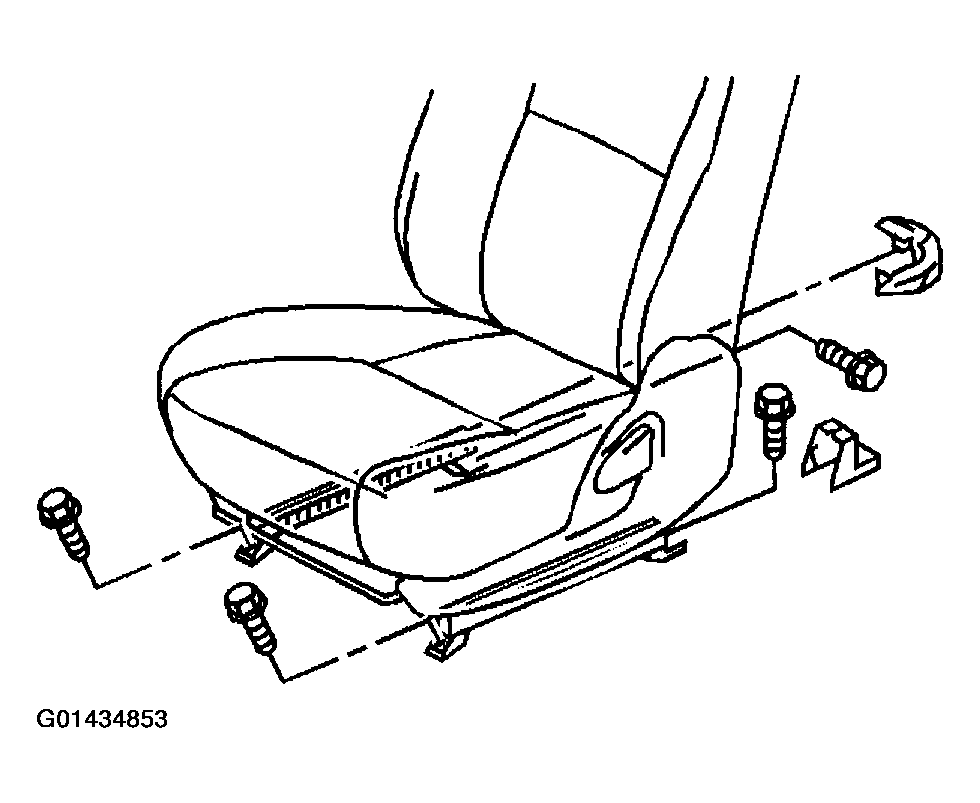

    Fig 2: Removing Front Seat Assembly Bolts
    G01434853Courtesy of GENERAL MOTORS CORP.
