Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Refer to FASTENER NOTICE .
  1. Install the front seat assembly to the vehicle. Secure the seat with the 4 bolts.

    Tighten

    Tighten the front seat assembly bolts to 47 N.m (35 lb ft).

  2. Install the seat bolt finish covers.

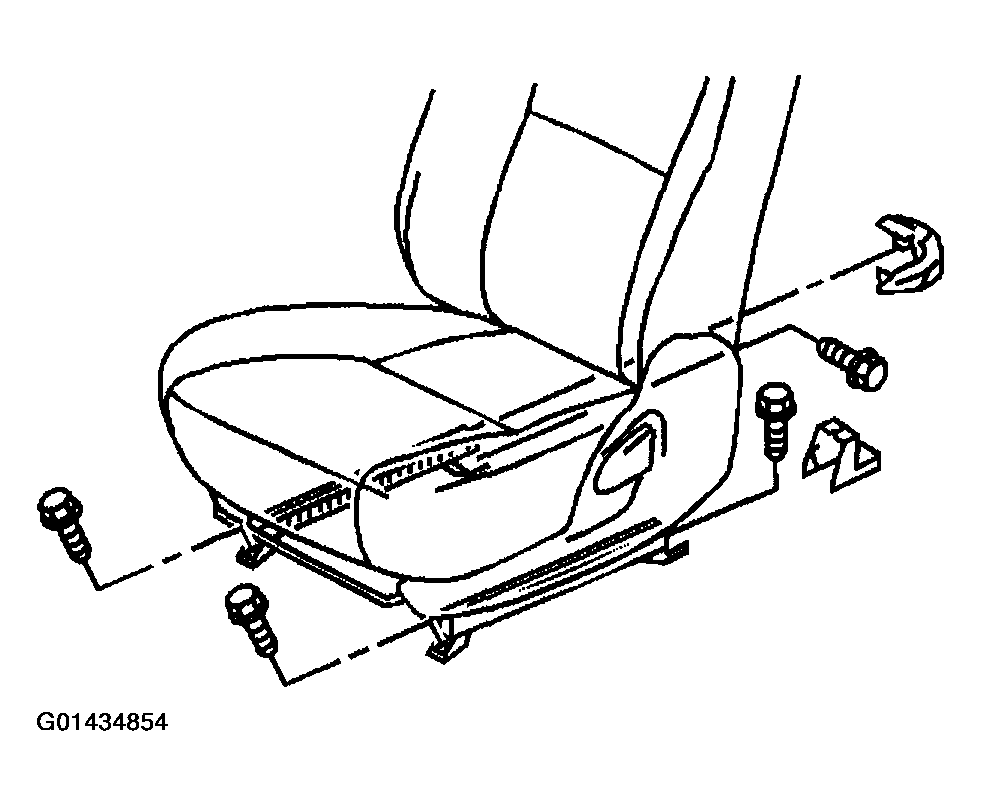

    Fig 1: Installing Front Seat Assembly Bolts
    G01434854Courtesy of GENERAL MOTORS CORP.
  3. Connect the side impact inflatable restraint module electrical connector (1), if equipped.
  4. Enable the SIR system, if disabled. Refer to ZONE 7 and to ZONE 9 .
    Fig 2: Connecting Side Impact Inflatable Restraint Module Electrical Connector
    G01434855Courtesy of GENERAL MOTORS CORP.
