Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rear seat back trim panel. Refer to TRIM PANEL REPLACEMENT - REAR SEAT BACK (LEFT)  or TRIM PANEL REPLACEMENT - REAR SEAT BACK (RIGHT)  .
  2. Remove the 2 pivot bolts (2).
  3. Remove the 2 lower mounting bolts (4).
  4. Pull the rear seat cushion forward in order to remove the cushion from the vehicle.

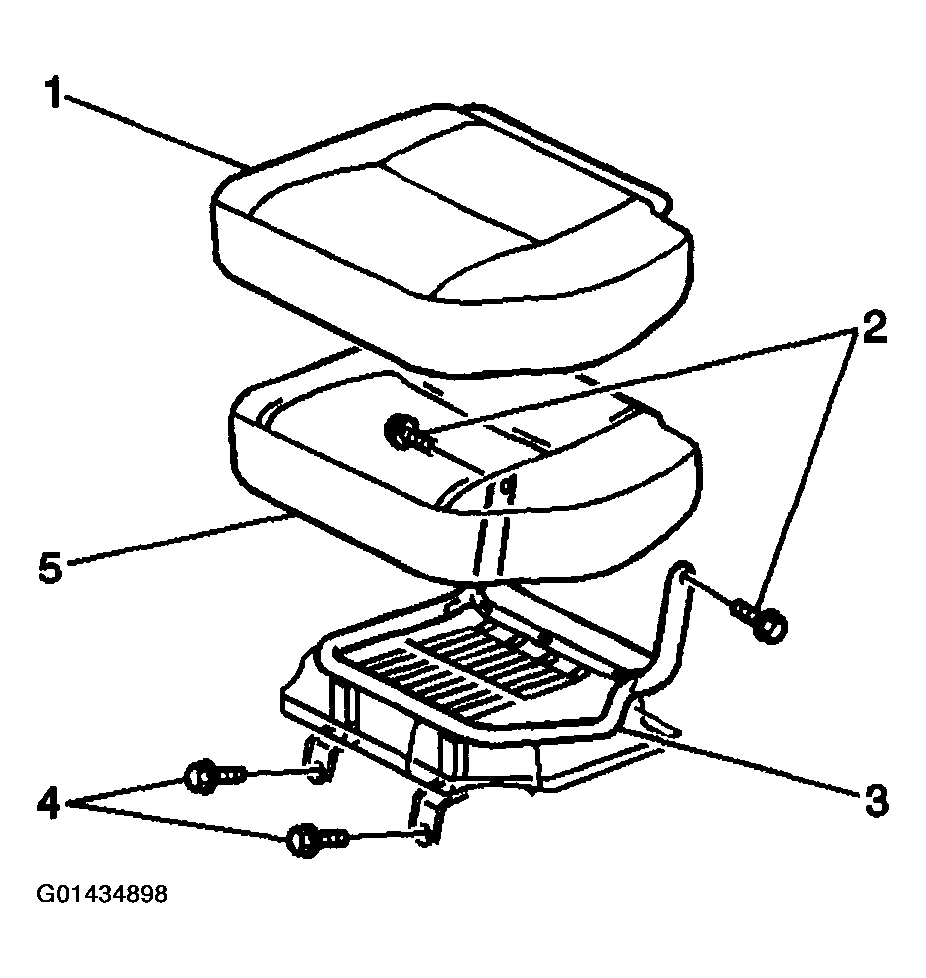

    Fig 1: Removing Rear Seat Cushion
    G01434898Courtesy of GENERAL MOTORS CORP.
