Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.
  1. Slide the rear seat cushion into position. Ensure that the seat belt buckles are properly position through the cushion.
    NOTE: Refer to FASTENER NOTICE .
  2. Install the 2 lower mounting bolts (4)

    Tighten

    Tighten the lower mounting bolts (4) to (41 N.m and 30 lb ft).

  3. Install the 2 pivot bolts (2).

    Tighten

    Tighten the pivot bolts (2) to (18 N.m and 13 lb ft).

  4. Install the rear seat back trim panel. Refer to TRIM PANEL REPLACEMENT - REAR SEAT BACK (LEFT)  or TRIM PANEL REPLACEMENT - REAR SEAT BACK (RIGHT)  .

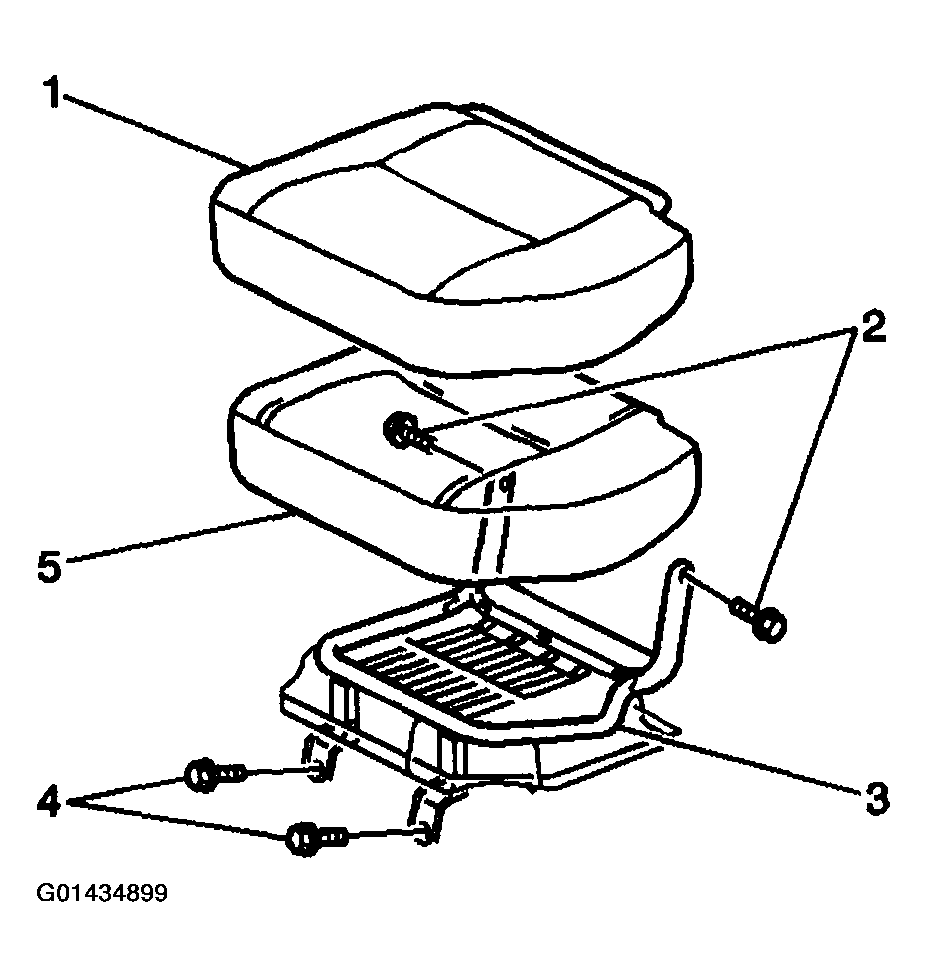

    Fig 1: Installing Rear Seat Cushion
    G01434899Courtesy of GENERAL MOTORS CORP.
